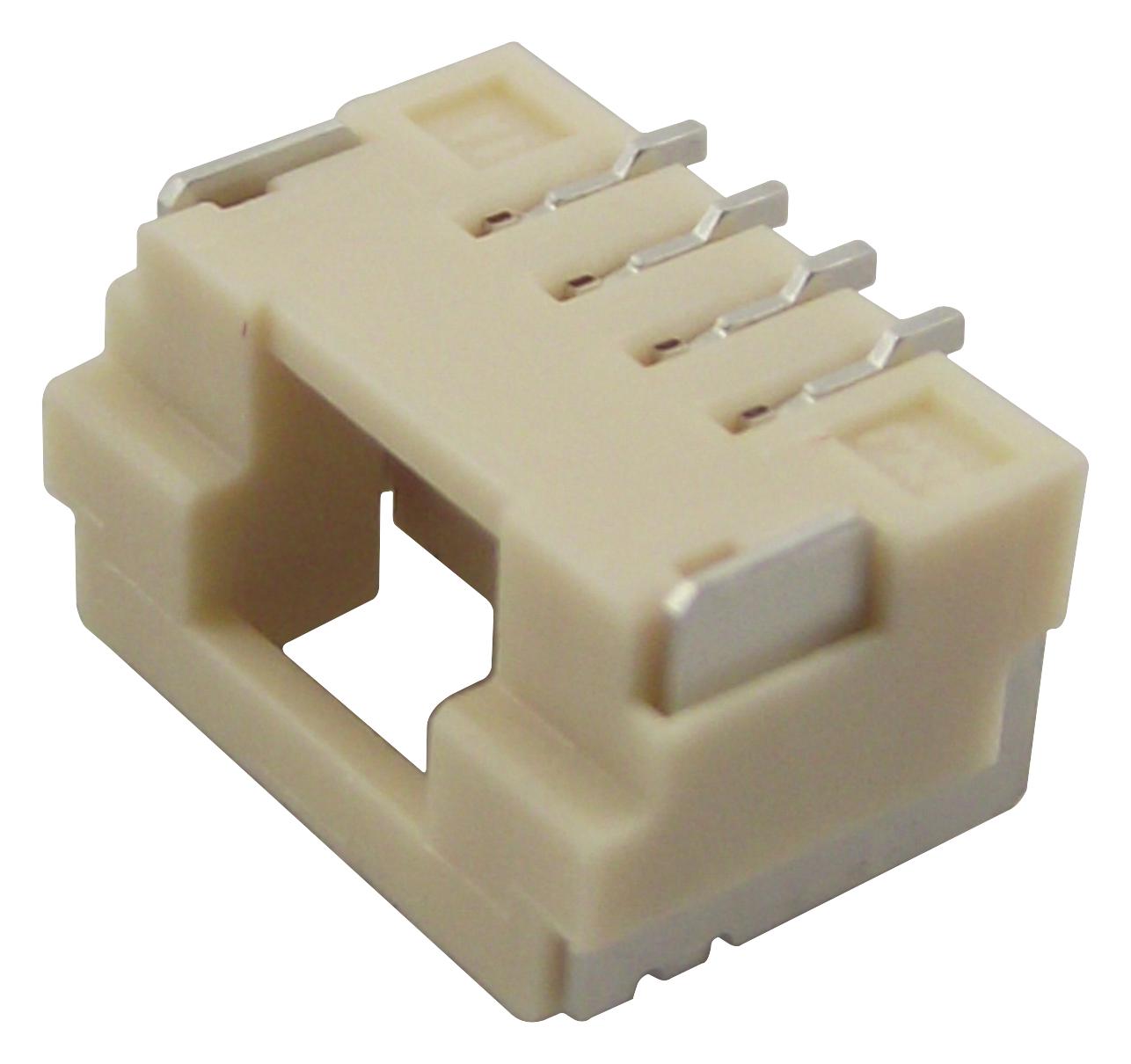

MOLEX 5023820470 Wire-to-Board Connector
The 1.25mm Pitch CLIK-Mate Wire-to-Board Receptacle is designed for reliable PCB connections in various electronic applications. It features a single row, vertical orientation, and tin-plated copper alloy contacts, supporting up to 4 circuits with a maximum of 4 circuits loaded. Constructed from high-temperature thermoplastic, it withstands operating temperatures from -40°C to +105°C. The connector offers durability for up to 30 mating cycles, with an embedded guide and keying to ensure proper mating. Its compact profile and compliance with RoHS, UL certifications make it ideal for industrial and consumer electronics requiring secure wire-to-board connections in a compact space.
MOLEX 5023820470 Wire-to-Board Connector Specifications:
- Pitch - Mating Interface: 1.25mm
- Number of Circuits (Loaded): 4
- Maximum Circuits: 4
- Color - Resin: Natural
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Durability (mating cycles max): 30
- Operating Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 50V AC/DC
- Net Weight: 241.201 mg
- Orientation: Vertical
- Packaging Type: Embossed Tape on Reel
- Guide to Mating Part: Yes
- Lock to Mating Part: Yes
- PCB Retention: Yes
- Polarized to Mating Part: Yes
- Polarized to PCB: No
- Stackable: No
- RoHS Compliant: Yes
- UL Certified: Yes
Buy the Molex 5023820470 – Reliable Wire-to-Board PCB Connector for Industrial Applications
Discover the Molex 5023820470 wire-to-board connector, designed for secure and reliable PCB connections. Featuring a 1.25mm pitch, tin-plated contacts, and high-temperature thermoplastic, it ensures durability in demanding environments. Suitable for industrial, consumer, and electronic applications, this connector supports up to 4 circuits with a maximum current of 1A per contact. Its vertical orientation, easy mating, and RoHS compliance make it an ideal choice for efficient manufacturing and maintenance. Purchase online today for quality and dependability.
Get Molex 5023820470 today—built for precision and long-lasting durability in electronic assemblies.
