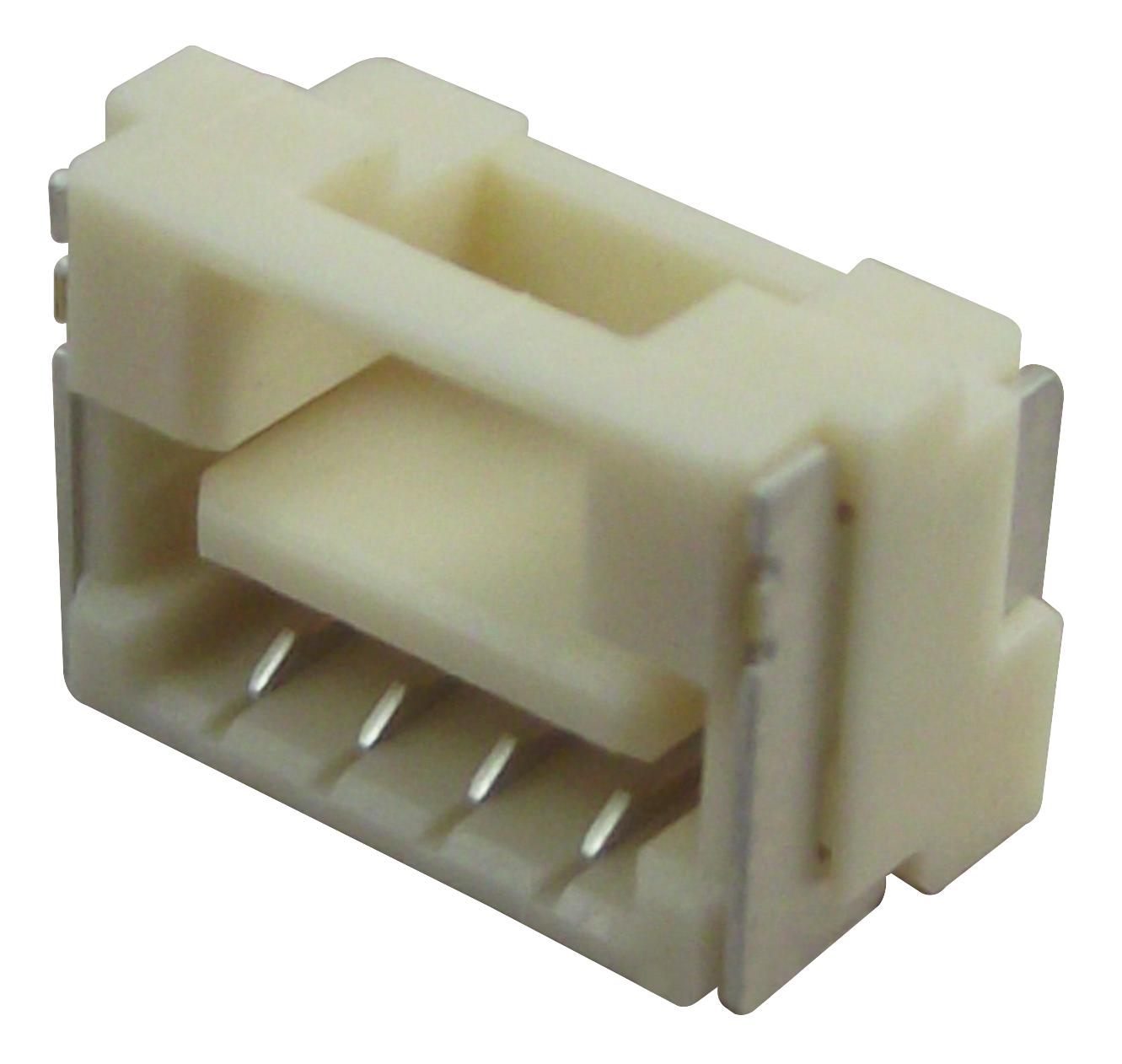

MOLEX 5023860470 PCB Receptacle
The 5023860470 is a reliable wire-to-board PCB receptacle designed for industrial and electronic applications. It features a 4-circuit, right-angle interface with a 1.25mm pitch, capable of supporting currents up to 1.0A and voltages of 50V AC/DC. Made from high-temperature thermoplastic with tin-plated copper alloy contacts, it offers durability with up to 30 mating cycles. Suitable for surface mount technology, it is RoHS and REACH compliant, and designed for secure keying, easy mating, and robust performance across a temperature range of -40°C to +105°C.
MOLEX 5023860470 PCB Receptacle Specifications:
- Circuits (Loaded): 4
- Circuits (maximum): 4
- Color - Resin: Natural
- Durability (mating cycles max): 30
- Glow-Wire Capable: No
- Guide to Mating Part: Yes
- Keying to Mating Part: Yes
- Lock to Mating Part: Yes
- Mated Height: 5.55mm
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Net Weight: 241.201 mg
- Number of Rows: 1
- Orientation: Right Angle
- PCB Locator: No
- PCB Retention: Yes
- Packaging Type: Embossed Tape on Reel
- Pitch - Mating Interface: 1.25mm
- Pitch - Termination Interface: 1.25mm
- Plating min - Mating: 1.016 um
- Plating min - Termination: 1.016 um
- Polarized to Mating Part: Yes
- Polarized to PCB: No
- Stackable: No
- Temperature Range - Operating: -40°C to +105°C
- Termination Interface: Style: Surface Mount
- Current - Maximum per Contact: 1.0A
- Voltage - Maximum: 50V AC/DC
- RoHS Compliance: Yes
- REACH SVHC: Not Contained
- Halogen-Free Status: Not Low-Halogen
Buy the Molex 5023860470 – Reliable PCB Receptacle for Industrial Applications
Purchase the Molex PCB Receptacle now to ensure durable, high-performance connectivity for your electronic projects. Its 4-circuit, 1.25mm pitch interface offers reliable electrical contact and robust mechanical strength. Made from high-temperature thermoplastic with tin-plated copper alloy contacts, it supports currents up to 1.0A and voltages of 50V AC/DC, perfect for surface mount technology. RoHS and REACH compliant, this connector is suitable for demanding industrial environments, ensuring longevity through up to 30 mating cycles with secure keying and easy mating design.
Buy Molex 5023860470 now and experience unmatched reliability and performance in demanding electronic assemblies.
