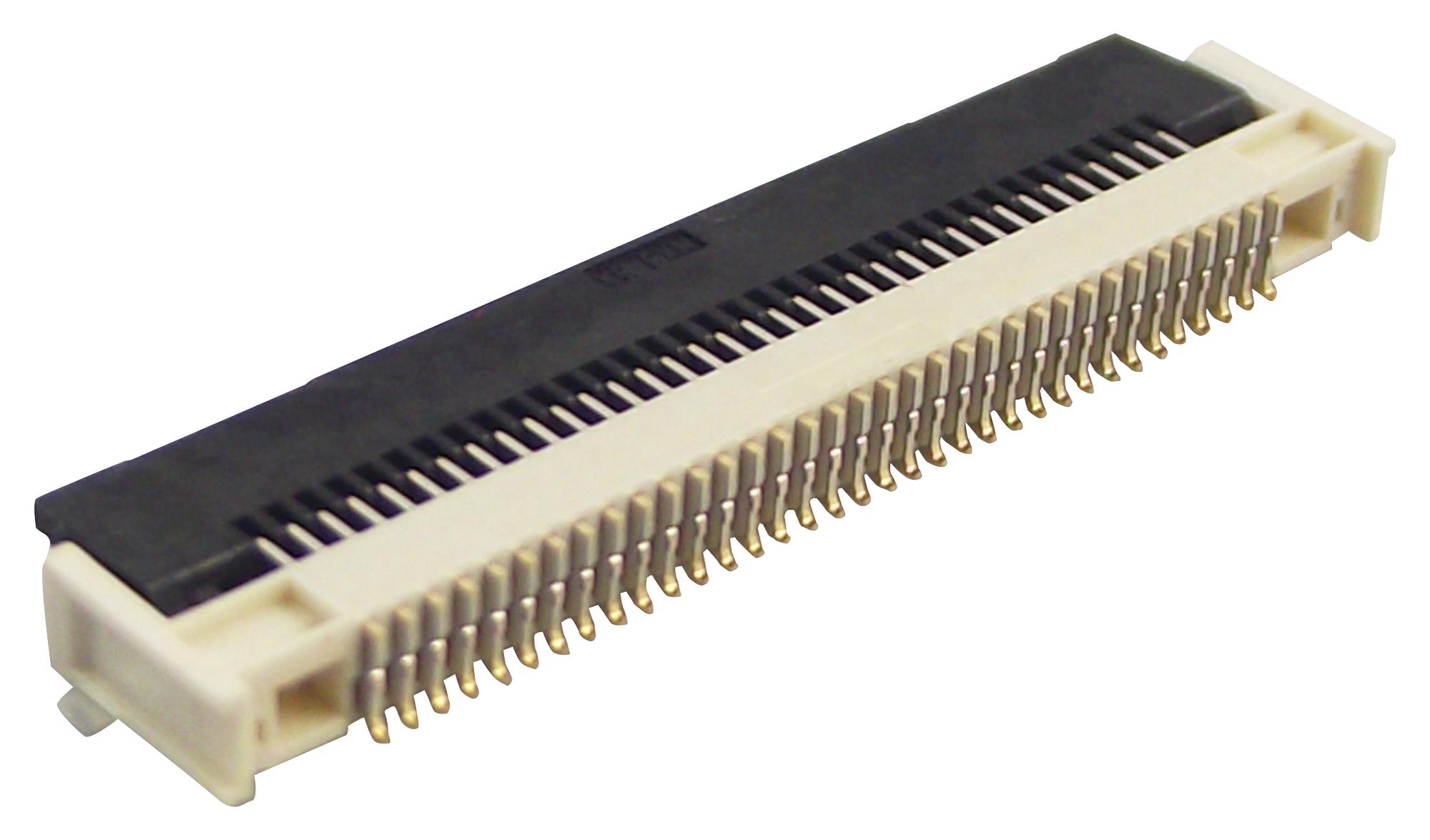

MOLEX 5051102491 FFC FPC Connector
The Easy-On FFC/FPC Connector with a 0.50mm pitch features a right-angle, bottom contact design, and is part of the FD19 series. It supports 24 circuits, has a height of 1.90mm, and features gold over nickel plating for reliable connections. Designed for surface-mount technology, this connector is ideal for compact electronic devices requiring quick assembly, robust electrical performance, and high durability. It complies with RoHS standards, offering a cost-effective, space-saving solution for flexible printed circuits and flat-flex cable connections in various electronic applications.
MOLEX 5051102491 FFC FPC Connector Specifications:
- Pitch - Mating Interface: 0.50mm
- Number of Circuits: 24
- Mated Height: 1.90mm
- Contact Material: Phosphor Bronze
- Plating - Mating: Gold over Nickel
- Fiber Material: Liquid Crystal Polymer
- Operating Temperature Range: -40°C to +105°C
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 50V AC/DC
- Orientation: Right-Angle
- Mounting: Surface Mount
- Packaging: Embossed Tape on Reel
- Durability: Up to 20 mating cycles
- Color: Beige
- Component Family: FFC-FPC Connectors
Buy the Buy Molex FFC FPC Connector Part Number 5051102491 Online
Purchase the Molex FD19 series FFC FPC connector with 24 circuits, 0.50mm pitch, and gold over nickel plating. Designed for surface-mount applications, it offers excellent electrical performance and durability. Ideal for compact, high-density electronic devices, this connector supports quick assembly, RoHS compliance, and reliable connectivity. Easily available online, it ensures your projects meet industry standards for quality and efficiency. Confirm your specifications and order now for a dependable, space-efficient solution in your electronic designs.
Order your Molex FD19 series 5051102491 right-angle FFC/FPC connector today and ensure reliable, space-saving connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 5051102491?
You can click on the BUY or RFQ button to purchase 5051102491 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5051102491?
You can download the 5051102491 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5051102491?
MOLEX
