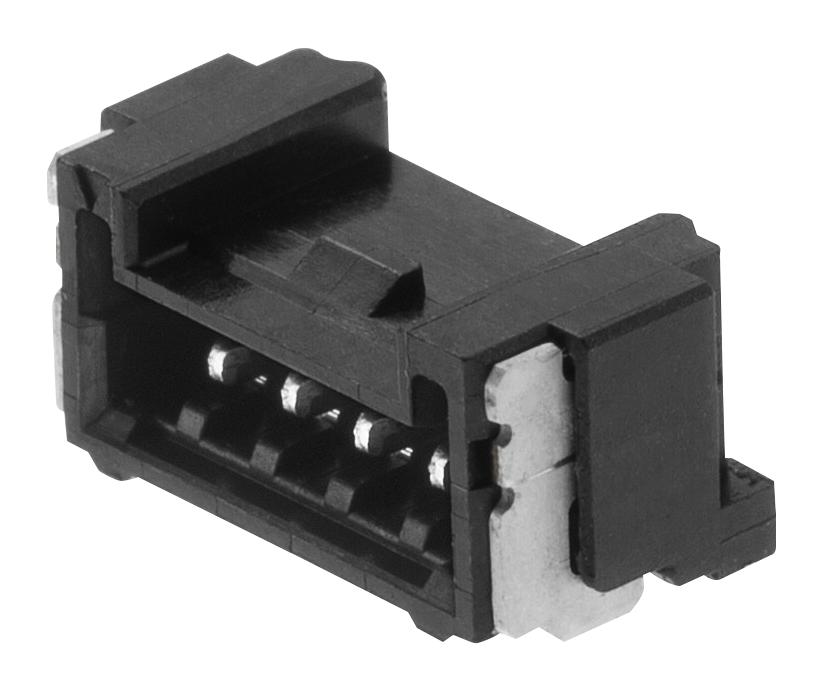

MOLEX 5055670271 Micro-Lock Connector
The Micro-Lock PLUS Right Angle Header is a 1.25mm pitch, single-row wire-to-board connector system designed for reliable electrical connections in industrial and electronic applications. It features tin-bismuth plating for enhanced durability, with a maximum current rating of 1.5A per contact. Made from high-quality materials including brass and polyamide resin, it supports up to 30 mating cycles. Its compact, black, surface-mount design ensures secure fitment on PCB boards, with excellent resistance to operating temperatures from -40°C to +105°C. Ideal for automation, control systems, and electronic devices requiring compact, robust connectors.
MOLEX 5055670271 Micro-Lock Connector Specifications:
- Pitch: 1.25mm
- Number of Circuits: 2
- Color - Resin: Black
- Material - Metal: Brass
- Material - Plating Mating: Tin-Bismuth
- Material - Plating Termination: Tin-Bismuth
- Temperature Range - Operating: -40°C to +105°C
- Current - Maximum per Contact: 1.5A
- Durability (mating cycles max): 30
- Surface Mount Compatible: Yes
- Lock to Mating Part: Yes
- Orientation: Right Angle
- Packaging: Embossed Tape on Reel
- Voltage - Maximum: 50V AC/DC
- Seal: None
- PCB Retention: Yes
Buy the Molex 5055670271 – Reliable Micro-Lock Plus Connector for Industrial Applications
Secure your electronic assemblies with the Micro-Lock Plus Connector, offering a 1.25mm pitch, robust tin-bismuth plating, and excellent durability for industrial use. This 2-circuit, surface-mount connector system supports up to 30 mating cycles, ensuring long-term reliability. Its high-temperature tolerance from -40°C to +105°C makes it suitable for harsh environments. Designed for easy PCB mounting, it provides secure locking and efficient wiring. Order now online to enhance your automation and control systems with this compact, highly dependable connector that ensures reliable connections in compact spaces.
Buy Molex 5055670271 now and experience unmatched reliability and performance with high-quality, surface-mount wire-to-board connectors designed for demanding industrial environments.
