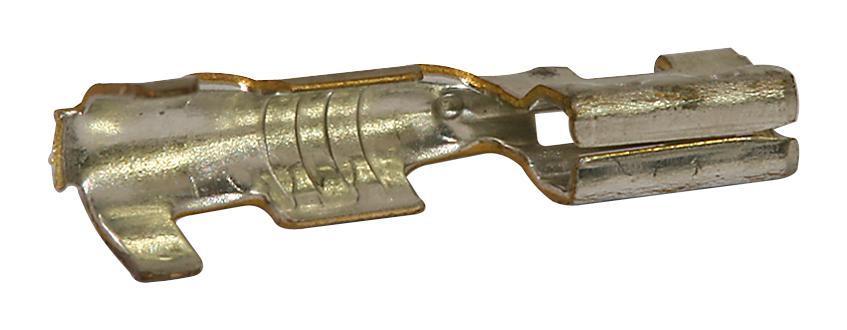

MOLEX 508028100 Crimp Terminal
The Mini-Latch Female Crimp Terminal is designed for 2.50mm pitch wire-to-board and wire-to-wire connections, made from phosphor bronze with tin plating for reliable electrical performance. Suitable for crimping 22-28 AWG wire sizes, it supports up to 3A current and endures up to 30 mating cycles. The terminal features a mini-latch system ensuring secure connections, with dimensions compatible with standard crimp tools. It complies with RoHS and low-halogen standards, making it ideal for compact, reliable electronic assemblies in industrial and consumer applications.
MOLEX 508028100 Crimp Terminal Specifications:
- Pitch: 2.50mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Wire Range: 22-28 AWG
- Wire Size mm: 1.15-1.90mm
- Current - Max: 3A
- Durability (mating cycles): 30
- Plating Min - Mating: 0.889um
- Plating Min - Termination: 0.914um
- Net Weight: 57.000/mg
- Packaging: Bag
- Application: Wire-to-Board, Wire-to-Wire
- Certification: RoHS, Low-Halogen
- Application Specification: 511910000-AS-000
- Product Specification: PS-51191-002
- Reference: 50802 series
Buy the Molex 0508028100 – Reliable Crimp Terminal for Industrial Applications
Enhance your electronic projects with this high-quality Molex crimp terminal designed for 2.50mm pitch connections. Made from durable phosphor bronze with tin plating, it ensures reliable electrical contact and easy crimping for 22-28 AWG wires. Supports up to 3 amperes of current and offers 30 mating cycles for repeated connections. Its compact design with a mini-latch mechanism guarantees secure attachment, ideal for industrial, consumer, and automation applications. Available for online purchase now for quick integration into your assemblies.
Buy Molex 0508028100 now and experience unmatched reliability and performance with secure, high-quality crimp connections for industrial use.
Frequently Asked Questions
Where can I buy MOLEX 508028100?
You can click on the BUY or RFQ button to purchase 508028100 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 508028100?
You can download the 508028100 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 508028100?
MOLEX
