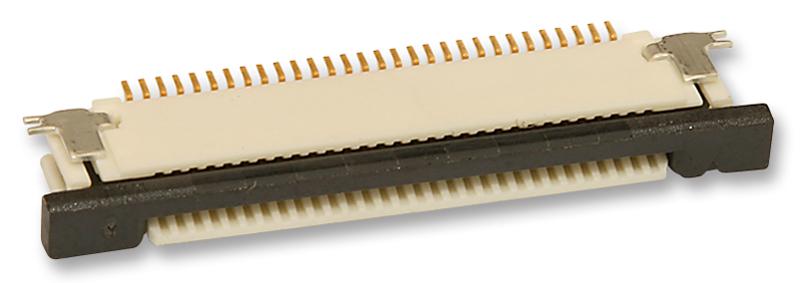

MOLEX 524352871 FFC/FPC Connector
The Easy-OnTM FFC/FPC connector is a right-angle, surface-mount, ZIF, 28-circuit connector designed for flexible flat cables and flexible printed circuits. It features top contact style with gold-plated contacts for reliable electrical connection. Suitable for SMT applications, this connector has a operating temperature range of -40°C to +85°C, and offers durability with up to 20 mating cycles. Constructed from phosphor bronze with a 0.50mm pitch, it is RoHS and UL compliant, making it ideal for compact electronic assemblies requiring secure, easy engagement, and high reliability.
MOLEX 524352871 FFC/FPC Connector Specifications:
- Number of Circuits: 28
- Entry Angle: 90°
- Contact Style: Top
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Gold
- Material - Resin: Nylon
- Mated Height: 2.00mm
- Temperature Range - Operating: -40°C to +85°C
- Current - Maximum per Contact: 0.5A
- Voltage - Maximum: 50V AC (RMS)/DC
- Pitch - Mating Interface: 0.50mm
- Flammability: 94V-0
- Durability (mating cycles max): 20
- Packaging: Embossed Tape on Reel
- RoHS and UL compliant
- Surface Mount, Right-Angle, ZIF, Gold Contacts
Buy the Molex 5244352871 – Reliable FFC-FPC Connector for Industrial Applications
Enhance your electronic projects with the Molex FFC FPC Connector. Featuring a right-angle design, gold-plated contacts for durability, and an easy ZIF mechanism, this 28-circuit surface-mount connector guarantees secure connections and high reliability. Operating from -40°C to +85°C, it complies with RoHS and UL standards, ideal for compact, demanding electronic applications. Make your assembly process easier and more efficient by purchasing this high-quality connector online today and ensure long-term performance with proven design and materials.
Buy Molex 5244352871 now and experience unmatched reliability and performance in your electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 524352871?
You can click on the BUY or RFQ button to purchase 524352871 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 524352871?
You can download the 524352871 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 524352871?
MOLEX
