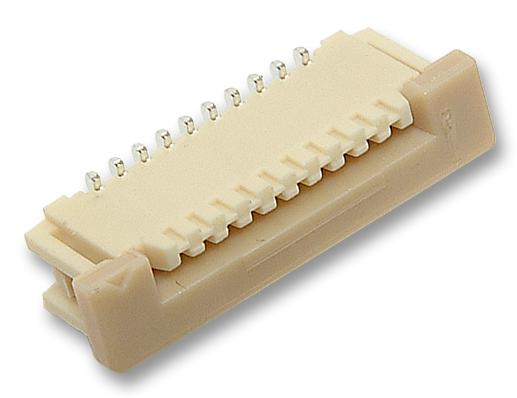

MOLEX 526101833 FFC FPC Connector
The Molex FFC-FPC Connector series offers a vertical, surface-mount ZIF receptacle designed for flexible flat cable and flexible printed circuit applications. With 18 circuits and a 1.00mm pitch, it provides reliable electrical connections with a maximum current of 1A per contact and a voltage rating of 125V. Made from nylon with phosphor bronze contacts plated in silver and tin-bismuth, it features a durable design with 30 mating cycles, operating in temperatures from -40°C to +85°C, making it suitable for compact electronic assemblies requiring high reliability.
MOLEX 526101833 FFC FPC Connector Specifications:
- Circuits: 18
- Color - Resin: Natural
- Entry Angle: Vertical
- Mated Height: 5.75mm
- Material - Metal: Phosphor Bronze
- Material - Plating: Mating Silver, Tin-Bismuth; Termination Silver, Tin-Bismuth
- Material - Resin: Nylon
- Net Weight: 851.8 mg
- Number of Rows: 1
- Orientation: Vertical
- PC Tail Length: 2.00mm
- Temperature Range: -40°C to +85°C
- Termination Interface: Surface Mount
- Wire/Cable Type: FFC/FPC
- Current per Contact: 1A
- Voltage Max: 125V
- Flammability: 94V-0
- Mating Cycles: 30
- Mated Height: 5.75mm
- Pitch - Mating and Termination Interface: 1.00mm
Buy the Buy Molex FFC-FPC Connector Part Number 52610-1833 Online
Secure the Molex FFC FPC Connector online today to ensure dependable and precise connections for your electronic projects. Designed for vertical SMT installation with a 1.00mm pitch, this 18-circuit connector features a ZIF mechanism for easy mating and durability of up to 30 mating cycles. Made using high-quality nylon and phosphor bronze with reliable silver and tin-bismuth plating, it operates from -40°C to +85°C. Perfect for compact electronic assemblies requiring stable electrical connections and long-lasting performance in various industrial and consumer electronics applications.
Buy Molex 52610-1833 now and experience unmatched reliability and performance in flexible circuit connections.
Frequently Asked Questions
Where can I buy MOLEX 526101833?
You can click on the BUY or RFQ button to purchase 526101833 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 526101833?
You can download the 526101833 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 526101833?
MOLEX
