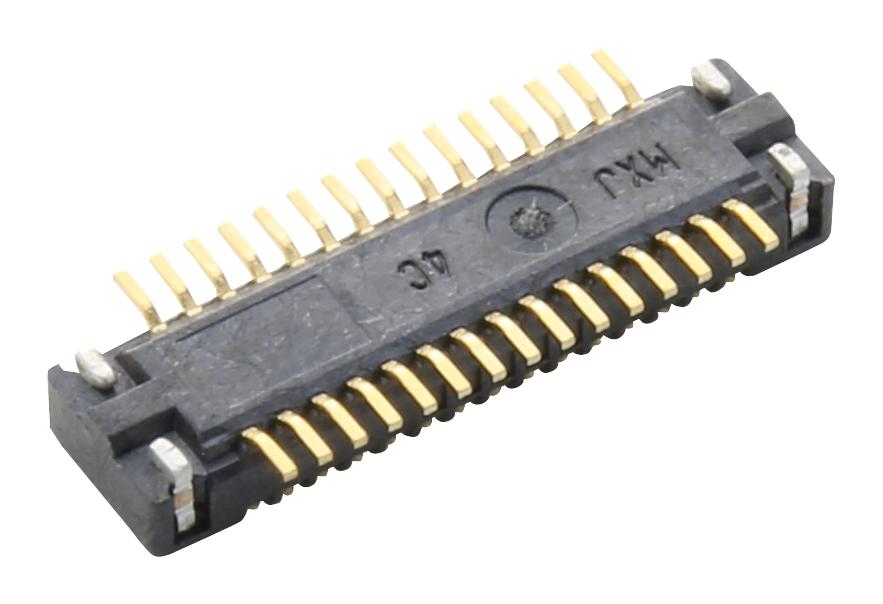

MOLEX 559090474 SlimStack Board-to-Board Connector
The MOLEX 55909-0474 SlimStack Board-to-Board Connector is a compact solution for connecting PCBs in a variety of applications. With a 0.40mm pitch and J-Bend series design, this connector provides a reliable and space-saving connection. It is suitable for applications requiring a plug configuration and offers mated heights of 1.50mm or 1.80mm, and mated widths of 3.40mm or 4.20mm. The connector supports up to 40 circuits and is designed for durability with a 30 mating cycle rating.
MOLEX 559090474 SlimStack Board-to-Board Connector Specifications:
- circuit_count_loaded: 40
- circuit_count_maximum: 40
- color_resin: Black
- durability_mating_cycles_max: 30
- first_mate_last_break: No
- glow_wire_capable: No
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- mated_height: 1.50mm, 1.80mm
- mated_width: 3.40mm, 4.20mm
- material_metal: Brass
- material_plating_mating: Gold
- material_plating_termination: Gold
- net_weight: 38.620/mg
- number_of_rows: 2
- orientation: Vertical
- pcb_locator: No
- pcb_retention: Yes
- packaging_type: Embossed Tape on Reel
- pitch_mating_interface: 0.40mm
- temperature_range_operating: -25° to +85°C
- termination_interface_style: Surface Mount
- current_maximum_per_contact: 0.3A
- voltage_maximum: 50V AC (RMS)/DC
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
Buy the 55909-0474 MOLEX SlimStack Board-to-Board Connector | myMectronic
Purchase the MOLEX 55909-0474 SlimStack Board-to-Board Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 559090474?
You can click on the BUY or RFQ button to purchase 559090474 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 559090474?
You can download the 559090474 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 559090474?
MOLEX
