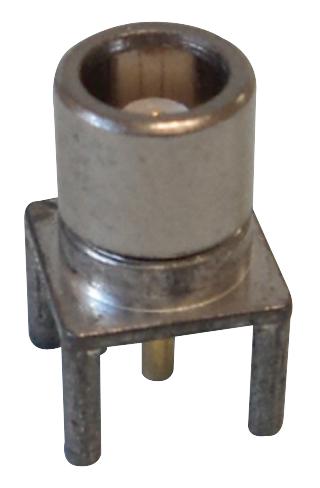

MOLEX 733660060 RF Connector
The MCX RF connector is a 50 Ohms, micron miniature, straight jack receptacle designed for PCB mounting. It features a nickel-plated body, a height of 7.10mm, and a 1.57mm standoff. Suitable for applications within RF and coaxial systems, it operates at frequencies up to 6 GHz with an impedance of 50Ω. The connector is RoHS compliant, halogen-free, and features a durable, low-profile design with through-hole mounting, ideal for compact electronic device assemblies and high-frequency communication equipment.
MOLEX 733660060 RF Connector Specifications:
- Impedance: 50Ω
- Frequency Range: Up to 6 GHz
- Height: 7.10mm
- Standoff: 1.57mm
- Material: Nickel (Ni) Plated Body
- Connector Type: MCX Jack Receptacle
- Mounting: Through Hole PCB Mount
- PCB Thickness: Recommended 1.20mm
- RoHS Compliant: Yes
- Halogen-Free: Yes
- Process Temperature Max.: 260°C
- Process Capability: Lead-free SMC & WAVE
- Durability: Max. 2 Cycles at Max Temperature
- Status: Active
- Package: Tray
- Gender: Jack
- Orientation: Straight
Buy the Buy Molex MCX Part Number 733660060 Online
Enhance your RF and coaxial systems with this high-quality Molex RF connector. The 50 Ohms MCX jack receptacle offers a compact, straight design with nickel plating, ensuring durability and optimal performance at frequencies up to 6 GHz. Perfect for PCB mounting in various electronic applications, it is RoHS compliant, halogen-free, and designed for straightforward installation. Secure this connector online today to achieve dependable high-frequency connections in your communication and device systems.
Order your Molex Series73366 733660060 RF connector today and ensure reliable high-frequency connections for your electronic projects.
