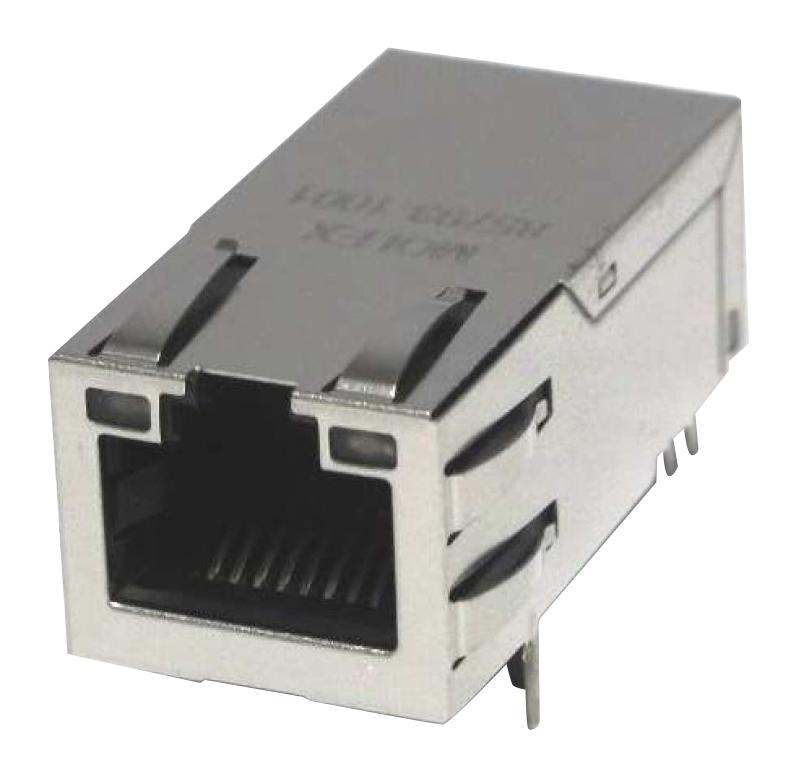

MOLEX 857931006 Magnetic RJ45 Jack
The Gigabit Magnetic Jack is a 1x1 LED-enabled modular RJ45 connector designed for high-speed Ethernet applications. Made from brass and phosphor bronze with gold-plated contacts, it supports 750 mating cycles, operates between 0°C to +70°C, and features through-hole termination, a 1.02mm pitch interface, and shielded construction. Its robust design ensures reliable connectivity for PCB mounting, with a maximum voltage of 150V RMS and current per contact of 1.0A. Suitable for industrial networking environments requiring durable, high-performance Ethernet connections.
MOLEX 857931006 Magnetic RJ45 Jack Specifications:
- Physical Height: 13.87mm
- Material: Brass, Phosphor Bronze
- Plating: Gold (mating), Tin (termination)
- Resin: Thermoplastic Polyurethane
- Color - Resin: Black
- LED Indicators: Yes, 1x1 LEDs (Yellow - Green)
- Mating Cycles: 750
- Operating Temperature: 0°C to +70°C
- Voltage - Max: 150V (RMS)
- Current - Max per Contact: 1.0A
- Termination Style: Through Hole
- PCB Compatibility: 2.80mm thickness, PCB Locator and Retention
- Port Configuration: 1x1
- Connections: 8/8 positions
- Shielded: Yes
- Waterproof/Dustproof: No
- Durability: Supports reliable Ethernet connections with RoHS compliance
- Packaging: Tray
- Serial: Series 85793 EU RoHS
- RoHS & ELV Compliant: Yes
- Waterproof / Dustproof: No
Buy the Molex 857931006 – Reliable Magnetic Jack for Industrial Applications
Purchase the Molex Magnetic RJ45 Jack online today to experience high-performance Ethernet connectivity with shielded design, LED indicators, and durability for industrial environments. This modular connector supports 750 mating cycles, operates within a temperature range of 0°C to +70°C, and is suitable for PCB mounting with through-hole termination style. Its compact 1.02mm pitch interface ensures easy integration into your network systems, while RoHS compliance guarantees environmentally safe usage. Reliable, efficient, and ready for demanding industrial applications—order now for fast worldwide delivery.
Order your Molex Series85793 857931006 magnetic jack today and ensure robust, high-speed Ethernet connections for your industrial networking needs.
