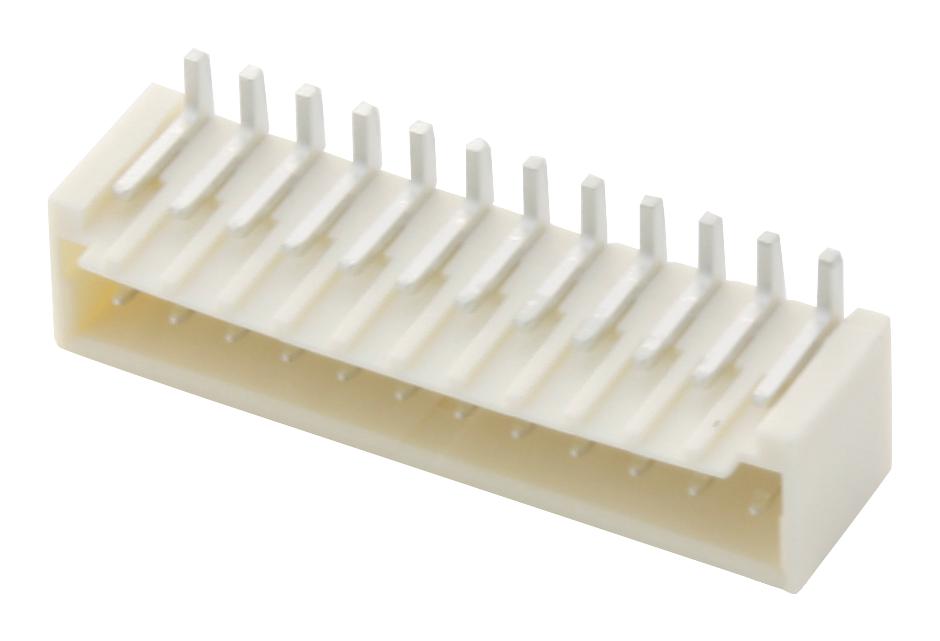

MOLEX 874371243 Wire-to-Board Connector
The Pico-SPOX Wire-to-Board Connector System is a compact and reliable connector designed for surface mount applications with a 1.50mm pitch. It features a beige nylon housing with tin-plated contacts, supporting 12 circuits without a cap. Suitable for various electronic devices, it offers a maximum current of 2.5A and voltage of 250V AC/DC, with a durable design up to 20 mating cycles. Meets RoHS and UL certifications, ensuring compliance with industry safety and environmental standards. Ideal for space-constrained and high-density electronics.
MOLEX 874371243 Wire-to-Board Connector Specifications:
- Pitch: 1.50mm
- Number of Circuits: 12
- Material - Resin: Nylon
- Plating - Mating & Termination: Tin (Sn) 2.540um
- First Mate / Last Break: Yes
- Temperature Range: -55°C to +105°C
- Current - Maximum per Contact: 2.5A
- Voltage - Maximum: 250V AC/DC
- Color: Beige
- Orientation: Vertical
- Termination Interface: Surface Mount
- Flammability: UL94V-0
- RoHS & REACH Compliant
- Durability (Mating Cycles): Up to 20
- UL Certified
Buy the Molex Series Pico-SPOX Wire-to-Board Connector: 874371243
Purchase the Molex Pico-SPOX Wire-to-Board Connector system online today for dependable surface mount connections with a 1.50mm pitch. Designed for high-density electronics, it features 12 circuits with tin-plated contacts, supporting up to 2.5A and 250V. Its durable nylon housing ensures longevity through multiple mating cycles, and it complies with RoHS and UL standards. Ideal for applications requiring space-efficient, reliable, and easy-to-mate connectors, this system offers excellent electrical performance in a compact package.
Get Molex Pico-SPOX 874371243 today—built for high-density electronic applications with reliable surface mount connections.
Frequently Asked Questions
Where can I buy MOLEX 874371243?
You can click on the BUY or RFQ button to purchase 874371243 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 874371243?
You can download the 874371243 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 874371243?
MOLEX
