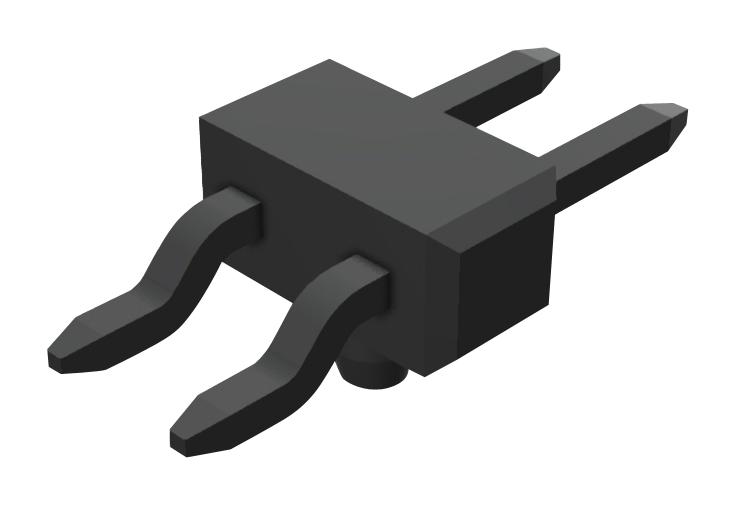

MOLEX 878580002 PCB Header
The Milli-Grid Connector System features a 2.00mm pitch breakaway header designed for surface-mount applications. It supports single-row, vertical orientation with a mating pin length of 3.20mm and accommodates 2 circuits, with a maximum of 2 circuits. Made from high-temperature thermoplastic with a copper alloy, it is tin over nickel plated for reliable performance. This PCB header meets UL, RoHS, and REACH standards, is halogen-free, and suitable for operating temperatures from -55°C to +105°C. The connector ensures secure mating with 2.00mm pitch receptacles and is ideal for wire-to-board connections.
MOLEX 878580002 PCB Header Specifications:
- Pitch - Mating Interface: 2.00mm
- Terminations: Surface Mount
- Number of Circuits: 2
- Maximum Circuits: 2
- Color - Resin: Black
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin over Nickel
- Material - Plating Termination: Tin over Nickel
- Material - Resin: High Temperature Thermoplastic
- Flammability: UL 94V-0
- Temperature Range - Operating: -55°C to +105°C
- Voltage - Maximum: 125V
- Current - Maximum per Contact: 2.0A
- Contact Pin Length: 3.20mm
- Net Weight: 0.059g per piece
- Packaging: Tray
Buy the Molex 878580002 – Reliable PCB Connectors for Industrial Applications
Experience the reliability of Molex 878580002 PCB headers, designed for robust wire-to-board electrical connections. With a 2.00mm pitch, surface-mount, single-row design, and high-quality materials, this connector ensures secure and durable performance in industrial and electronic applications. Certified for UL, RoHS, and REACH compliance, it withstands temperature ranges from -55°C to +105°C. Ideal for automation, manufacturing, and circuit integration, it offers easy installation, high current capacity, and consistent contact reliability for long-term operation. Purchase online now to enhance your electronic projects with trusted connectivity solutions.
Get Molex 878580002 today—built for precision and long-lasting durability in electronic assemblies.
Frequently Asked Questions
Where can I buy MOLEX 878580002?
You can click on the BUY or RFQ button to purchase 878580002 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 878580002?
You can download the 878580002 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 878580002?
MOLEX
