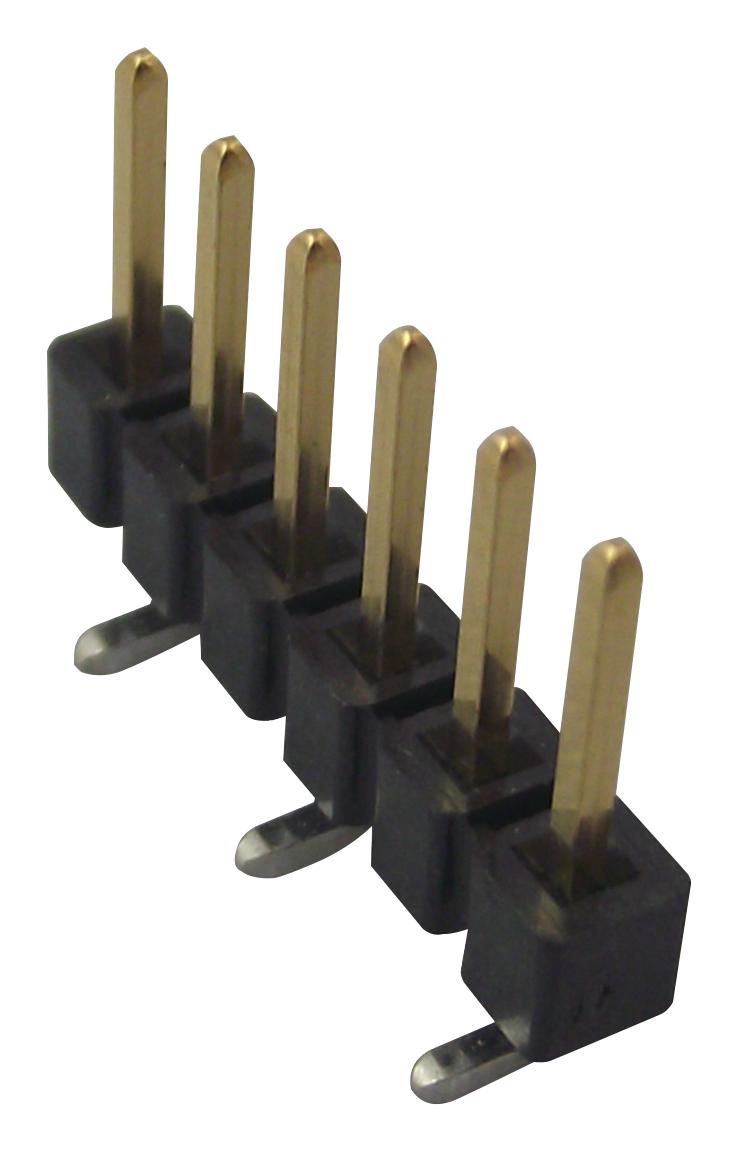

MOLEX 878980624 Signal Header
This surface-mount C-Grid/SL Header features a vertical orientation with 6 circuits, gold plating, and a breakaway design. It is lead-free, RoHS compliant, and UL certified, suitable for board-to-board signal connections. The connector operates within a temperature range of -55°C to +105°C, with a 2.54mm pitch for mating and termination interfaces. Made from copper alloy with tin plating, it weighs approximately 322.443 mg and includes packaging specifications for tube packaging. Ideal for reliable, high-performance circuit connections in industrial and electronic applications.
MOLEX 878980624 Signal Header Specifications:
- Number of Circuits: 6
- Circuit Max.: 6
- Color - Resin: Black
- Flammability: UL 94V-0
- Operating Temperature Range: -55°C to +105°C
- Material - Metal: Copper Alloy
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Solder Process Data: Max. 260°C for reflow, duration 60 seconds
- Electrical Rating: 3.0A, 250V
- Pitch - Mating Interface: 2.54mm
- Number of Rows: 1
- Orientation: Vertical
- Packaging: Tube
- RoHS: Compliant
- UL Certification: Yes
- Process Capability: Reflow, Max cycles 003
Buy the Molex 878980624 – Reliable Signal Connector for Industrial Applications
Discover the reliable and high-performance signal connection solution with the Molex 878980624. This 6-circuit, surface-mount C-Grid/SL Header features gold plating for excellent conductivity and durability. Designed for vertical mounting, its lead-free and RoHS compliant construction ensures environmental safety and compliance. Suitable for a wide temperature range from -55°C to +105°C, it delivers dependable performance in industrial, electronic, and manufacturing applications. Order now to ensure your projects benefit from quality, precision, and enhanced connection reliability.
Buy Molex 878980624 now and experience unmatched reliability and performance with high-quality, lead-free, and RoHS compliant connectors for your industrial and electronic needs.
Frequently Asked Questions
Where can I buy MOLEX 878980624?
You can click on the BUY or RFQ button to purchase 878980624 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 878980624?
You can download the 878980624 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 878980624?
MOLEX
