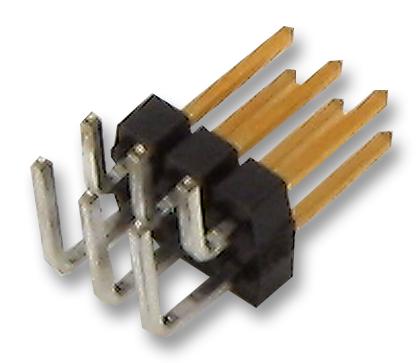

MOLEX 901220764 PCB Header
The 2.54mm Pitch C-Grid III Interconnects are dual-row, right-angle PCB headers designed for signal and wire-to-board connections. Featuring 8 circuits with 0.3814 microns of gold selective plating, these high-performance connectors are made from durable polyester resin with brass metal contacts, plated with gold and tin. Suitable for operating temperatures between -55°C to +125°C, they support maximum currents of 3.0A per contact and a voltage of 350V. Packaged in trays, these headers are RoHS compliant and ideal for reliable electronic assemblies requiring precise, vibration-resistant connections.
MOLEX 901220764 PCB Header Specifications:
- Pitch - Mating Interface: 2.54mm
- Circuit Count: 8 circuits
- Material - Metal: Brass
- Material - Resin: Polyester
- Plating - Mating: 0.381um Gold
- Plating - Termination: Tin, 3.048um
- Orientation: Right Angle
- Temperature Range: -55°C to +125°C
- Current - Max per Contact: 3.0A
- Voltage - Max: 350V
- PC Tail Length: 2.90mm
- Packaging: Tray
- Flammability: UL 94V-0
- RoHS Compliant: Yes
- Color: Black
- Net Weight: 0.664g
Buy the Buy Molex C-Grid Ill Part Number 0901220764 Online
Purchase the Molex PCB Header with 8 circuits and gold plating today to ensure dependable connections in your electronics. This high-quality right-angle header is designed for signal applications, supporting currents up to 3.0A and voltage up to 350V. Made from durable polyester resin with brass contacts, it offers excellent temperature resistance from -55°C to +125°C. Packaged in trays for easy handling, this RoHS-compliant connector provides reliable, vibration-resistant connections perfect for demanding electronic assemblies.
Order your Molex Series90122 0901220764 high-reliability connector today and ensure optimal signal integrity and secure wiring in your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 901220764?
You can click on the BUY or RFQ button to purchase 901220764 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901220764?
You can download the 901220764 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901220764?
MOLEX
