MOLEX 901512114 C-Grid Connector
The C-Grid III PC Board Connector is a dual-row, vertical orientation connector with 14 circuits, featuring tin (Sn) plating for reliable electrical connections. Designed for board-to-board applications, it uses phosphor bronze contacts and supports a maximum current of 3A per contact with a maximum voltage of 350V. Its black polyester insulation ensures durability, with a recommended PCB thickness of 1.60mm and a PCB tail length of 2.90mm. Suitable for operating temperatures from -55°C to +125°C, it complies with RoHS and is halogen-free, making it an essential component for reliable and environmentally compliant electronic assemblies.
MOLEX 901512114 C-Grid Connector Specifications:
- Circuits: 14
- Maximum circuits: 14
- Color: Black
- Flammability: 94HB
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Polyester
- Net Weight: 1.212 grams
- Number of Rows: 2
- Orientation: Vertical
- PCB Tail Length: 2.90mm
- PC Board Thickness - Recommended: 1.60mm
- Pitch - Mating Interface: 2.54mm
- Plating min - Mating: Tin
- Plating min - Termination: Tin
- Temperature Range - Operating: -55°C to +125°C
- Current - Maximum per Contact: 3A
- Voltage - Maximum: 350V
- Termination Interface: Style: Through Hole

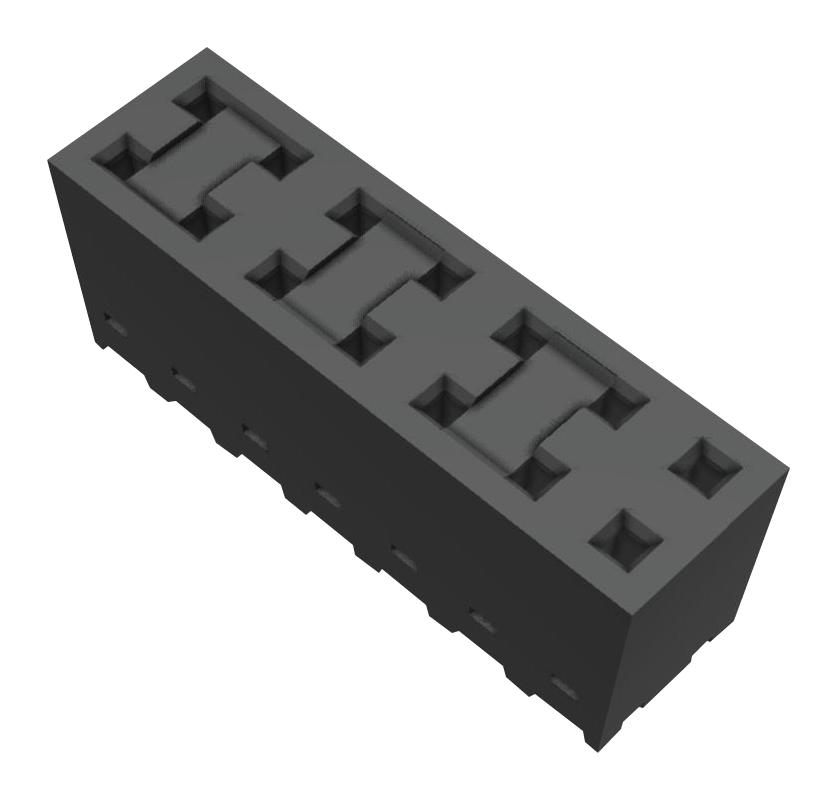

Buy the Buy Molex C-Grid Connector Part Number 0901512114 Online
Enhance your electronic assemblies with the reliable and high-quality C-Grid Connector. Featuring 14 circuits, tin-plated contacts, and a robust design, it ensures secure connections in professional applications. Its vertical orientation, 2.54mm pitch, and operating temperature range of -55°C to +125°C make it suitable for a wide range of environments. Compliant with RoHS and halogen-free standards, this connector guarantees environmentally friendly and durable performance, making it an essential component for electronics manufacturing and board-to-board connections.
Buy Molex 0901512114 now and experience unmatched reliability and performance in electronic interconnection solutions.
Frequently Asked Questions
Where can I buy MOLEX 901512114?
You can click on the BUY or RFQ button to purchase 901512114 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 901512114?
You can download the 901512114 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 901512114?
MOLEX
