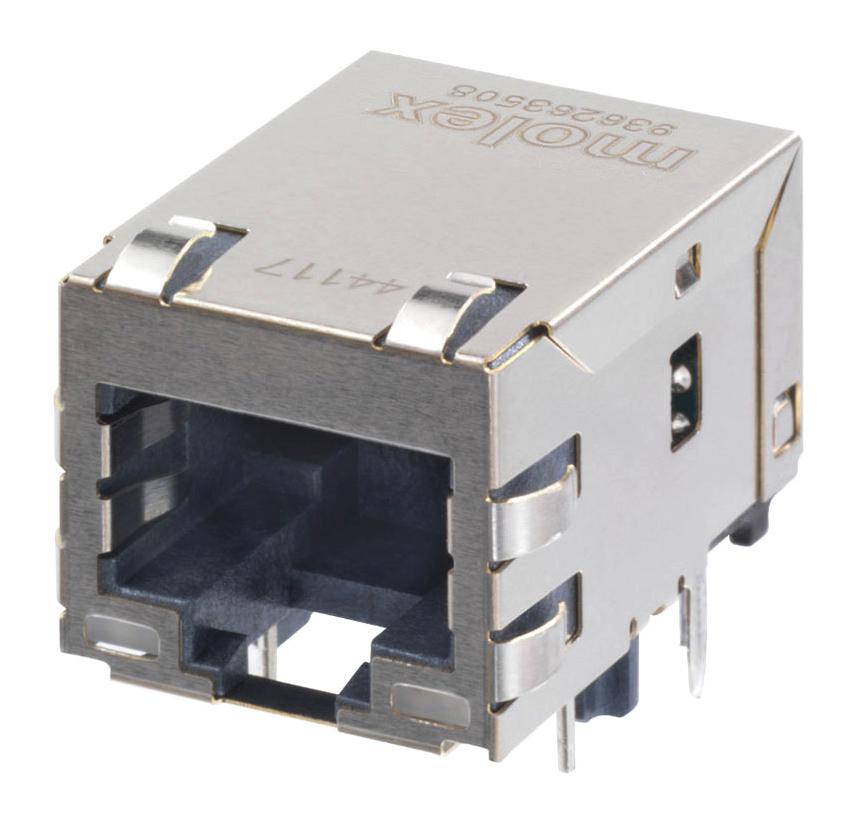

MOLEX 936263508 Ethernet Magnetic Jack
The MXMag Gigabit Ethernet magnetic jack is a right-angle PCB connector designed for high-performance network applications. It supports 1000Mb data transfer rates and features LED indicators with green/yellow LEDs for status signaling. Made with durable materials including phosphor bronze contacts with gold over palladium-nickel plating, it ensures reliable connections. This shielded, non-PoE RJ45 connector integrates with panel mounts and through-hole terminations, offering a maximum current of 0.5A per contact and a voltage rating of 125V. Its compact design measures 21.40mm in depth and 14.10mm in height, suitable for rugged industrial environments.
MOLEX 936263508 Ethernet Magnetic Jack Specifications:
- Series: 93626
- Component Type: PCB Jack
- Depth: 21.40mm
- Jack Height: 14.10mm
- Material - Resin: Liquid Crystal Polymer
- Material - Contacts: Phosphor Bronze with Gold over Palladium Nickel Plating
- Color: Black
- Mating Cycles: 2500
- LED Indicators: Green/Yellow
- Shielded: Yes
- Electrical Rating: 125V, 0.5A Max per Contact
- Operating Temperature: 0° to +70°C
- Termination Style: Through Hole
- Orientation: Right Angle (Side Entry)
- Packaging: Tray
- Grounding: Yes (PCB and Panel)
- RoHS Compliant, Halogen-Free: No, Not Low-Halogen
Buy the Molex Series 93626 Magnetic Jack: 0936263508
Upgrade your networking equipment with this durable Molex Ethernet magnetic jack, supporting 1000Mb data transfer, shielded construction, and integrated LED indicators. Designed for industrial environments, it features a right-angle connection, 2500 mating cycles durability, and a compact profile of 21.40mm depth. Perfect for panel mounting with through-hole termination, ensuring secure connections. The shielded design reduces electromagnetic interference, enhancing network stability. Easy to install and maintains reliable performance, this RJ45 connector meets industry standards for voltage and current, making it a dependable choice for high-speed Ethernet setups.
Order your Molex Series 93626 magnetic Ethernet jack today and ensure reliable, high-speed network connections for industrial and commercial projects.
