MONOLITHIC POWER SYSTEMS (MPS) EV3428AL00A Datasheet & Stock

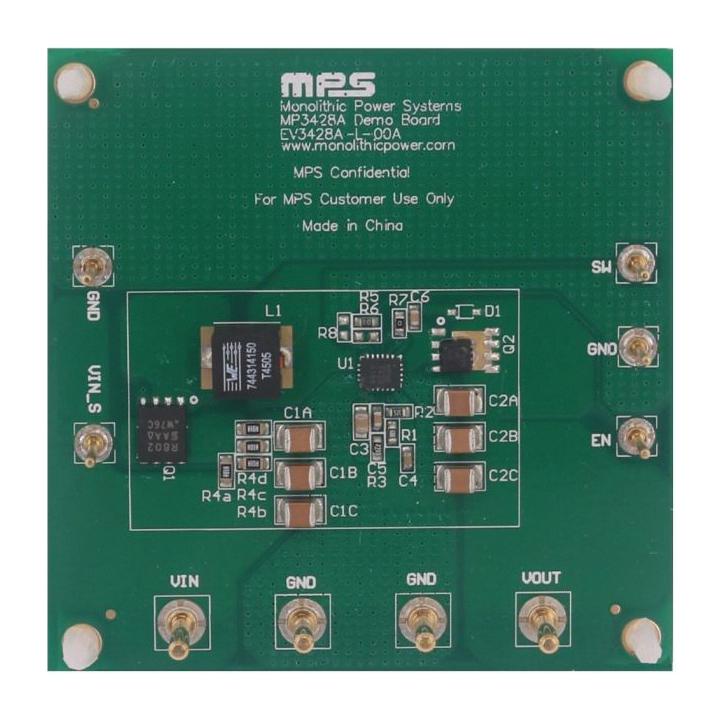

The EV3428A-L-00A evaluation board demonstrates the performance of the MP3428A power converter from Monolithic Power Systems. The MP3428A is a high-efficiency, wide input range boost converter operating at a fixed frequency of 600kHz. It can efficiently convert a 3.3V input to a 12V output capable of providing up to 2A, with features including internal or external current sensing, a 10mΩ power switch, and a synchronous gate driver for optimized efficiency. The board is configured for 12V applications, suitable for use in Thunderbolt interfaces, notebooks, tablets, Bluetooth audio devices, power banks, electronic cigarettes, and POS systems. Key features include a wide input voltage range of 3V to 10V, integrated low-side power FET, programmable current limit up to 19A, input disconnect, output short-circuit protection, external soft-start and compensation, and adjustable UVLO with hysteresis.
Frequently Asked Questions
Where can I buy MONOLITHIC POWER SYSTEMS (MPS) EV3428AL00A?
You can click on the BUY or RFQ button to purchase EV3428AL00A from an authorized MONOLITHIC POWER SYSTEMS (MPS) distributor.
How do I troubleshoot issues or seek technical support for part EV3428AL00A?
You can download the EV3428AL00A datasheet or visit the MONOLITHIC POWER SYSTEMS (MPS) website for support.
Who is the manufacturer of EV3428AL00A?
MONOLITHIC POWER SYSTEMS (MPS)
