MONOLITHIC POWER SYSTEMS (MPS) EV8770CQ00A Datasheet & Stock

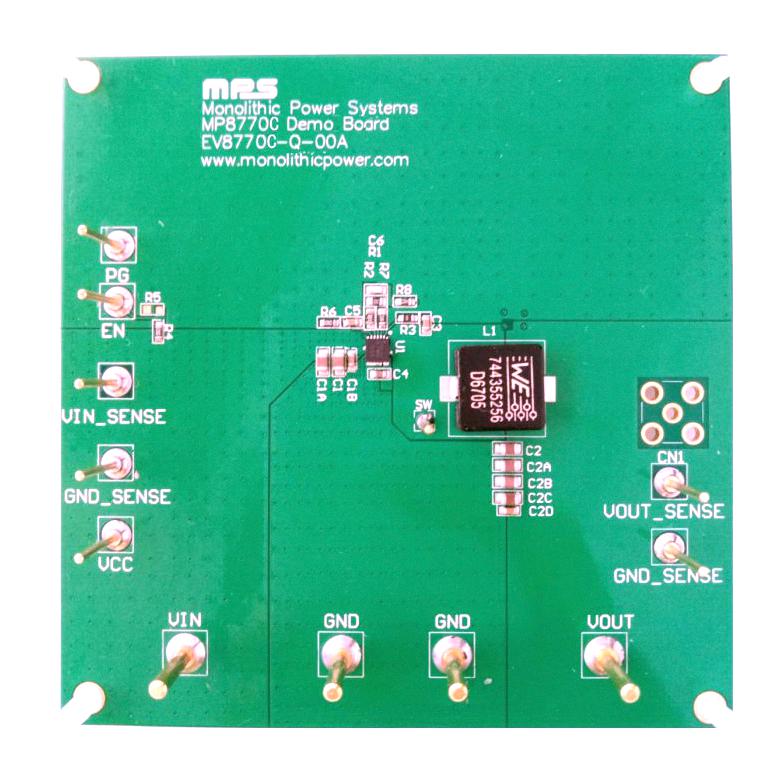

This is a high-efficiency step-down (buck) converter evaluation board operating at 700 kHz, capable of delivering up to 8A with a 17V input. It features a wide input voltage range from 3V to 17V, utilizing low R_DS(ON) internal power MOSFETs with 22 mΩ and 10 mΩ ratings. The board has a low quiescent current of 100 µA and supports synchronous-mode operation for high efficiency. It includes pre-biased startup, external programmable soft-start timing, and enable (EN) and power-good signals for effective power sequencing. Safety features encompass protection against shortcut conditions (SCP), overcurrent (OCP), undervoltage protection (UVP), and thermal shutdown. Note that some part numbers ending with '-P' or '-Z' indicate reel sizes, with no functional differences. Due to high market demand, lead times may be extended, and delivery dates can fluctuate. This product is exempt from discounts.
Frequently Asked Questions
Where can I buy MONOLITHIC POWER SYSTEMS (MPS) EV8770CQ00A?
You can click on the BUY or RFQ button to purchase EV8770CQ00A from an authorized MONOLITHIC POWER SYSTEMS (MPS) distributor.
How do I troubleshoot issues or seek technical support for part EV8770CQ00A?
You can download the EV8770CQ00A datasheet or visit the MONOLITHIC POWER SYSTEMS (MPS) website for support.
Who is the manufacturer of EV8770CQ00A?
MONOLITHIC POWER SYSTEMS (MPS)
