MONOLITHIC POWER SYSTEMS (MPS) EVCS1802S5000A Datasheet & Stock

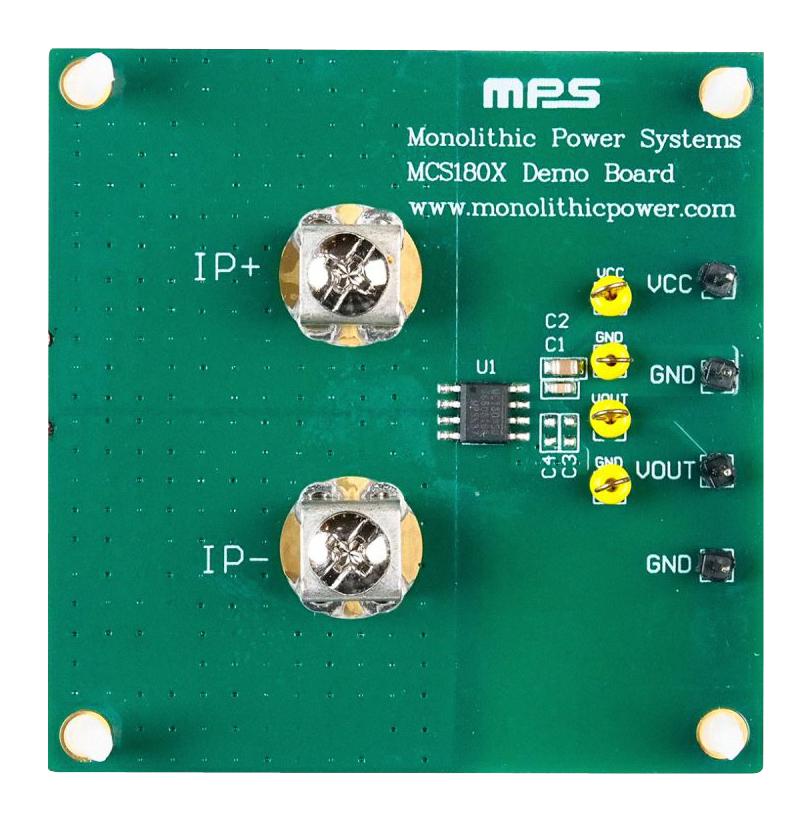

The Linear Hall Effect Current Sensor Evaluation Board is designed to demonstrate the capabilities of the MCS1802 linear hall effect current sensor for AC and DC current sensing applications. The sensor features a differential Hall array that cancels out stray magnetic fields, providing accurate output voltage proportional to the current flowing through the primary conductor. It offers galvanic isolation between the primary path and sensor leads, making it suitable as a replacement for optoisolators and other expensive isolation devices. The MCS1802 is available in a SOIC-8 package and is typically powered by a 3.3V supply. It supports optimized primary currents of ±50A with a typical sensitivity of 26.4 mV/A. The sensor includes a differential hall array, internal conductor resistance of 0.9 milliohm, and a maximum bandwidth of 100 kHz. The minimum output rise time is 4 microseconds. Common applications include motor control, automotive systems, load detection and management, switch-mode power supplies, and overcurrent fault protection.
Frequently Asked Questions
Where can I buy MONOLITHIC POWER SYSTEMS (MPS) EVCS1802S5000A?
You can click on the BUY or RFQ button to purchase EVCS1802S5000A from an authorized MONOLITHIC POWER SYSTEMS (MPS) distributor.
How do I troubleshoot issues or seek technical support for part EVCS1802S5000A?
You can download the EVCS1802S5000A datasheet or visit the MONOLITHIC POWER SYSTEMS (MPS) website for support.
Who is the manufacturer of EVCS1802S5000A?
MONOLITHIC POWER SYSTEMS (MPS)
