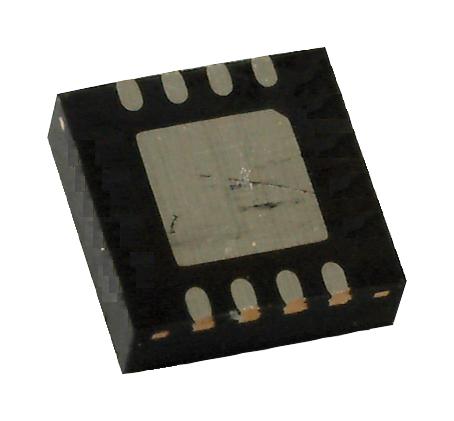

MONOLITHIC POWER SYSTEMS (MPS) MP2002DDLFP Adjustable Linear Regulator
This is a low input voltage, 500mA adjustable linear voltage regulator featuring a power good open collector output. It is stable with small ceramic capacitors, has a 2% feedback reference, and provides excellent load regulation better than 0.001% per milliampere. The device consumes a low ground current of approximately 100 microamperes and includes internal thermal and current limit protections. During shutdown, it exhibits a typical quiescent current of 6 microamperes. Note that MPS part numbers ending with '-P' and '-Z' are identical, with the suffixes only indicating reel size. Due to market demand, lead times may be extended, and delivery dates are subject to fluctuation. This product is exempt from discounts.
MONOLITHIC POWER SYSTEMS (MPS) MP2002DDLFP Adjustable Linear Regulator Specifications:
- Input Voltage Range: 1.35V to 6.5V
- Output Voltage Range: 0.5V to 5V (adjustable via external resistor divider)
- Output Current: Up to 500mA
- Dropout Voltage: 290mV at 500mA load
- Feedback Reference Voltage: 0.5V with 2% accuracy
- Load Regulation: Better than 0.001%/mA
- Ground Current: Approximately 100 microamperes
- Power Good Output: Open collector, with pull-up resistor recommended
- Thermal Protection: Yes, internal thermal shutdown
- Current Limit: 550mA to 730mA (typical)
- Quiescent Current in Shutdown: 6 microamperes
- Package: 8-pin QFN (2 x 3mm)
- Operating Temperature: -40°C to +85°C
- Protection Features: Thermal overload, current limit
- Capacitors: Stable with ceramic capacitors, recommended small-value bypass capacitors at input and output
Buy the Monolithic Power Systems Series MP2002 Adjustable Linear Regulator: MP2002DDLFP
Experience reliable power regulation with the Monolithic Power Systems MP2002DDLFP, an adjustable 500mA linear regulator designed for low voltage, high efficiency applications. Its stability with small ceramic capacitors, superior load regulation, and robust internal protections make it ideal for battery-powered devices, cellular phones, and low noise circuits. Easy to implement with external resistor divider for precise output voltage adjustment, this compact 8-pin QFN package ensures excellent thermal performance, making it an essential choice for modern electronic designs requiring dependable power management.
Get Monolithic Power Systems MP2002DDLFP today—built for precision and long-lasting durability in low-current, adjustable applications.
