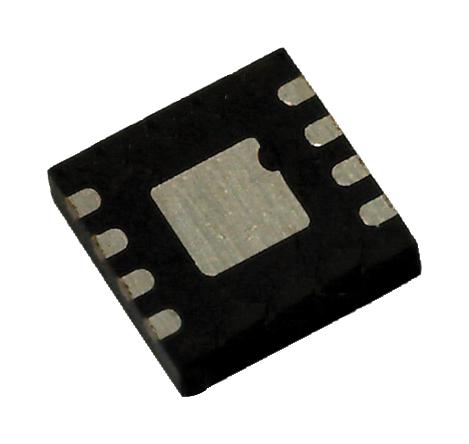

MONOLITHIC POWER SYSTEMS (MPS) MP20045DQLFP Low Noise Linear Regulator
This is a low-noise, adjustable linear voltage regulator capable of delivering up to 1A of current. It features a low ground current of approximately 110 µA, an open-drain power-good status output, and provides a low-noise output of 13 mV RMS. The regulator offers a high power supply rejection ratio of 56 dB at 1 kHz. It includes protection features such as low-power shutdown, short-circuit prevention, and thermal protection. Note that certain part numbers ending in '-P' and '-Z' are identical, with the suffix indicating reel size. Due to high market demand, lead times may be extended, and delivery dates are subject to fluctuation. The product is exempt from discounts.
MONOLITHIC POWER SYSTEMS (MPS) MP20045DQLFP Low Noise Linear Regulator Specifications:
- Input Voltage Range: 2.5V to 5.5V
- Output Voltage Range: 1.5V to 5V (adjustable)
- Maximum Output Current: 1A
- Dropout Voltage: 140mV at 1A
- Ground Current: 110µA
- Output Noise: 13mV RMS
- PSRR: 56dB at 1kHz
- Thermal Shutdown: 150°C with 20°C hysteresis
- Protection: Short-circuit, thermal, current limit
- Package: QFN8 (3mm x 3mm) and SOIC8E
- Input Voltage: 2.5V to 5.5V
- Operating Temperature Range: -40°C to +85°C
- Pin Configuration: VIN, VOUT, FB, GND, PG, EN
- Features: Low noise, high PSRR, low dropout, built-in overcurrent and thermal protection
Buy the Monolithic Power Series MP20045 Low Noise Linear Regulator: MP20045DQLFP
Purchase the Monolithic Power MP20045DQLFP online today and ensure reliable power management for your electronics. Benefit from low noise operation, high current capacity of 1A, and superior protection features including thermal shutdown and overcurrent protection. Designed with a compact 3mm x 3mm package, this regulator delivers minimal dropout voltage and excellent PSRR, making it ideal for battery-powered and sensitive devices. Shop now for fast and secure online procurement, ensuring your project maintains optimal performance and reliability at all times.
Get Monolithic Power MP20045DQLFP today—built for precision and long-lasting durability in sensitive electronic applications.
Frequently Asked Questions
Where can I buy MONOLITHIC POWER SYSTEMS (MPS) MP20045DQLFP?
You can click on the BUY or RFQ button to purchase MP20045DQLFP from an authorized MONOLITHIC POWER SYSTEMS (MPS) distributor.
How do I troubleshoot issues or seek technical support for part MP20045DQLFP?
You can download the MP20045DQLFP datasheet or visit the MONOLITHIC POWER SYSTEMS (MPS) website for support.
Who is the manufacturer of MP20045DQLFP?
MONOLITHIC POWER SYSTEMS (MPS)
