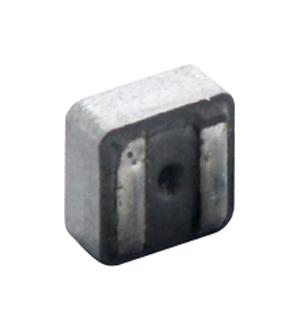

MONOLITHIC POWER SYSTEMS (MPS) MPLAL4020R47 Molded Inductor
The MPL-AL Series low-resistance molded inductor features a flat-wire design delivering higher current ratings than round-wire types. It offers low DC resistance, low AC losses, minimal audible noise, and a molded durable construction. Operating up to +155°C, it exhibits soft saturation characteristics and stable performance in high-current, high-frequency switch-mode power supplies, battery-powered devices, embedded computing, POL converters, and FPGA systems. Measuring 4.1mm x 4.1mm x 1.9mm, it is RoHS and REACH compliant, ideal for demanding electronic applications requiring reliable, high-performance inductors.
MONOLITHIC POWER SYSTEMS (MPS) MPLAL4020R47 Molded Inductor Specifications:
- Inductance: 0.47μH ±20%
- DCR: 6.2 mΩ
- Rated Current: 9.2 A
- Saturation Current: 12.5 A at 25°C
- Temperature Range: -40°C to +155°C
- Operating Temperature: -40°C to +155°C
- Size: 4.1mm x 4.1mm x 1.9mm
- Resonance Frequency: 123 MHz
- RoHS and REACH compliant
- Material: Molded, halogen-free
- Color code: R47 for 0.47μH
- Packaging: Tape and Reel
Buy the Buy Monolithic Power Systems MPL-AL4020-R47 Part Number MPL-AL4020-R47 Online
Purchase the Monolithic Power Systems MPL-AL4020-R47 low-resistance molded inductor online today. This high-performance component delivers 0.47 microhenry inductance, low DCR of 6.2 milliohms, and supports currents up to 9.2A for reliable high-frequency power circuits. Its molded, halogen-free construction ensures durability and minimal audible noise, making it perfect for advanced switch-mode power supplies, embedded systems, and FPGA applications. Conveniently ordered online, it guarantees quality, RoHS compliance, and consistent high performance for your critical electronic designs.
Get Monolithic Power Systems MPL-AL4020-R47 today—built for high current, durability, and stable performance in demanding electronic applications.
Frequently Asked Questions
Where can I buy MONOLITHIC POWER SYSTEMS (MPS) MPLAL4020R47?
You can click on the BUY or RFQ button to purchase MPLAL4020R47 from an authorized MONOLITHIC POWER SYSTEMS (MPS) distributor.
How do I troubleshoot issues or seek technical support for part MPLAL4020R47?
You can download the MPLAL4020R47 datasheet or visit the MONOLITHIC POWER SYSTEMS (MPS) website for support.
Who is the manufacturer of MPLAL4020R47?
MONOLITHIC POWER SYSTEMS (MPS)
