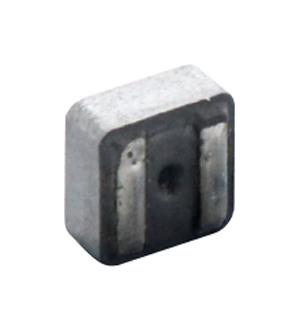

MONOLITHIC POWER SYSTEMS (MPS) MPLAL5030R82 Low-Resistance Molded Inductor
The MPL-AL series low-profile molded inductor features flat-wire construction, enabling lower DCR and AC resistance for high efficiency. Sized at 5.5mm x 5.3mm x 2.9mm, it supports high current and high-frequency applications such as battery-powered devices, embedded computing, and POL converters. Its robust molded design ensures durability, with low audible noise, soft saturation, and stability up to +155°C. Suitable for various switch-mode power supplies and FPGA power regulation, it offers a reliable, space-saving solution for demanding electronic circuits.
MONOLITHIC POWER SYSTEMS (MPS) MPLAL5030R82 Low-Resistance Molded Inductor Specifications:
- Inductance: 0.82 uH
- Resistance: Typical 5.0 mΩ, Max 5.8 mΩ
- Rated Current: 12.8 A
- Saturation Current (25°C): Typical 18 A
- Saturation Current (100°C): Typical 18 A
- Resonance Frequency: 53 MHz
- Dimensions: 5.5mm x 5.3mm x 2.9mm
- Operating Temperature: -40°C to +155°C
- Maximum Temperature: +155°C
- RoHS/REACH-compliant, Halogen-Free
- Packaging: Tape and Reel, -10°C to +40°C storage
- Humidity: <50% RH
Buy the Monolithic Power Series MPL-AL5030 R82 Low-Resistance Molded Inductor: 0.82uH
Get the Monolithic Power Series MPL-AL5030 R82 low-resistance molded inductor now for high-current, high-frequency applications. Its flat-wire design offers low DCR and AC losses, ensuring optimal performance in switch-mode power supplies, POL converters, and embedded computing. With a compact size of 5.5mm x 5.3mm x 2.9mm, it provides excellent stability up to +155°C and features molded construction for durability and noise reduction. Perfect for demanding electronic projects seeking efficient power regulation and space-saving design.
Order your Monolithic Power Series MPL-AL5030 R82 low-resistance molded inductor today and ensure high efficiency and durability in your power supply designs.
Frequently Asked Questions
Where can I buy MONOLITHIC POWER SYSTEMS (MPS) MPLAL5030R82?
You can click on the BUY or RFQ button to purchase MPLAL5030R82 from an authorized MONOLITHIC POWER SYSTEMS (MPS) distributor.
How do I troubleshoot issues or seek technical support for part MPLAL5030R82?
You can download the MPLAL5030R82 datasheet or visit the MONOLITHIC POWER SYSTEMS (MPS) website for support.
Who is the manufacturer of MPLAL5030R82?
MONOLITHIC POWER SYSTEMS (MPS)
