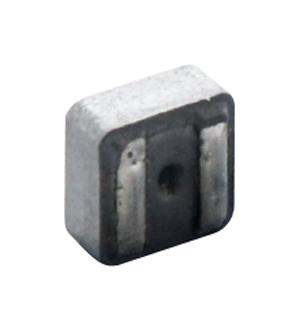

MONOLITHIC POWER SYSTEMS (MPS) MPLAL50505R6 Low-Resistance Molded Inductor
The MPL-AL series low-profile molded inductor features flat-wire construction, providing higher current capacity and lower DC resistance compared to round-wire inductors. It is designed for applications such as battery-powered devices, embedded computing, high-current and high-frequency switch-mode power supplies (SMPS), point-of-load (POL) converters, and FPGA circuits. The inductor measures 5.5mm x 5.3mm x 4.8mm, with low DCR and AC losses, low audible noise, and a molded construction that offers soft saturation and high temperature stability up to +155°C. RoHS-compliant, halogen-free, and suitable for high-reliability electronics.
MONOLITHIC POWER SYSTEMS (MPS) MPLAL50505R6 Low-Resistance Molded Inductor Specifications:
- Inductance: 5.6 µH ±20%
- Resistance: Typical 20 mΩ, Max 24.2 mΩ
- Rated Current: 6.8 A
- Saturation Current: 8 A at 25°C and 100°C
- Resonance Frequency: 19 MHz
- Dimensions: 5.5mm x 5.3mm x 4.8mm
- Operating Temperature: -40°C to +155°C
- Maximum Operating Temperature: +155°C
- Material: Molded construction with flat-wire design
- Compliance: RoHS and REACH, Halogen-Free
- Packaging: Tape and Reel
- Humidity: <50% RH
Buy the Monolithic Power Systems MPLAL50505R6 – Reliable Inductor for Industrial Applications
Enhance your electronic circuit performance by purchasing the MPLAL50505R6 now. This low-resistance, high-current molded inductor offers superior thermal stability, low DCR, and is ideal for high-frequency power supply applications such as embedded computing, POL converters, and FPGA circuits. Its compact size of 5.5mm x 5.3mm x 4.8mm, RoHS compliance, and temperature stability up to +155°C make it perfect for demanding industrial and consumer electronics. Order online today for rapid delivery and reliable operation.
Buy Monolithic Power Systems MPLAL50505R6 now and experience unmatched reliability and high current performance for your power management needs.
Frequently Asked Questions
Where can I buy MONOLITHIC POWER SYSTEMS (MPS) MPLAL50505R6?
You can click on the BUY or RFQ button to purchase MPLAL50505R6 from an authorized MONOLITHIC POWER SYSTEMS (MPS) distributor.
How do I troubleshoot issues or seek technical support for part MPLAL50505R6?
You can download the MPLAL50505R6 datasheet or visit the MONOLITHIC POWER SYSTEMS (MPS) website for support.
Who is the manufacturer of MPLAL50505R6?
MONOLITHIC POWER SYSTEMS (MPS)
