MONOLITHIC POWER SYSTEMS (MPS) MPLAY12651R2 High-Current Power Inductor
The MPL-AY molded inductor series features low DCR and ACR inductors capable of handling high current loads. These inductors are suitable for applications such as battery-powered devices, portable electronics, embedded computing, high-current switch-mode power supplies (SMPS), high-frequency SMPS, point-of-load (POL) converters, and FPGA systems. They have dimensions of 13.5mm x 12.6mm x 6.2mm, with a molded construction that ensures low audible noise, soft saturation characteristics, and stable performance over a wide temperature range. The maximum operating temperature is +155°C. Note: MPS part numbers ending in '-P' and '-Z' refer to the same components, with the suffix indicating reel size.
MONOLITHIC POWER SYSTEMS (MPS) MPLAY12651R2 High-Current Power Inductor Specifications:
- Inductance: 1.2μH
- Inductance Tolerance: ±20%
- DC Resistance: typ 1.8mΩ, max 2.2mΩ
- Rated Current: 24A
- Saturation Current: 37A at 25°C
- Saturation Current: 37A at 100°C
- Resonance Frequency: 38MHz
- Operating Temperature: -40°C to +155°C
- Dimensions: 13.5mm x 12.6mm x 6.2mm
- Housing: Molded
- RoHS/REACH Compliant, Halogen-Free

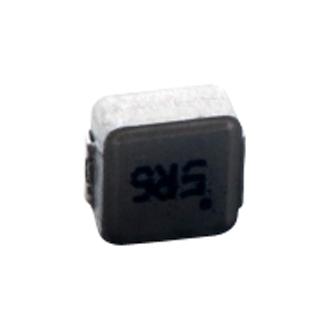

Buy the Monolithic Power Systems MPL-AY1265– Reliable Inductor for Industrial Applications
Purchase the Monolithic Power Systems MPL-AY1265-1R2 high-current inductor online today and improve your electronic circuits with reliable, low-noise, and thermally stable inductors. Perfect for portable electronics, embedded computing, and SMPS applications, this 1.2μH inductor ensures excellent performance at high temperatures up to +155°C. Its compact molded design provides low DCR and soft saturation characteristics, making it ideal for demanding power management and switching applications. Secure your supply chain and enjoy quick delivery with a straightforward online purchase process.
Order your Monolithic Power Systems MPL-AY1265-1R2 molded inductor today and enhance your high-current and high-frequency power designs with dependable quality.
Frequently Asked Questions
Where can I buy MONOLITHIC POWER SYSTEMS (MPS) MPLAY12651R2?
You can click on the BUY or RFQ button to purchase MPLAY12651R2 from an authorized MONOLITHIC POWER SYSTEMS (MPS) distributor.
How do I troubleshoot issues or seek technical support for part MPLAY12651R2?
You can download the MPLAY12651R2 datasheet or visit the MONOLITHIC POWER SYSTEMS (MPS) website for support.
Who is the manufacturer of MPLAY12651R2?
MONOLITHIC POWER SYSTEMS (MPS)
