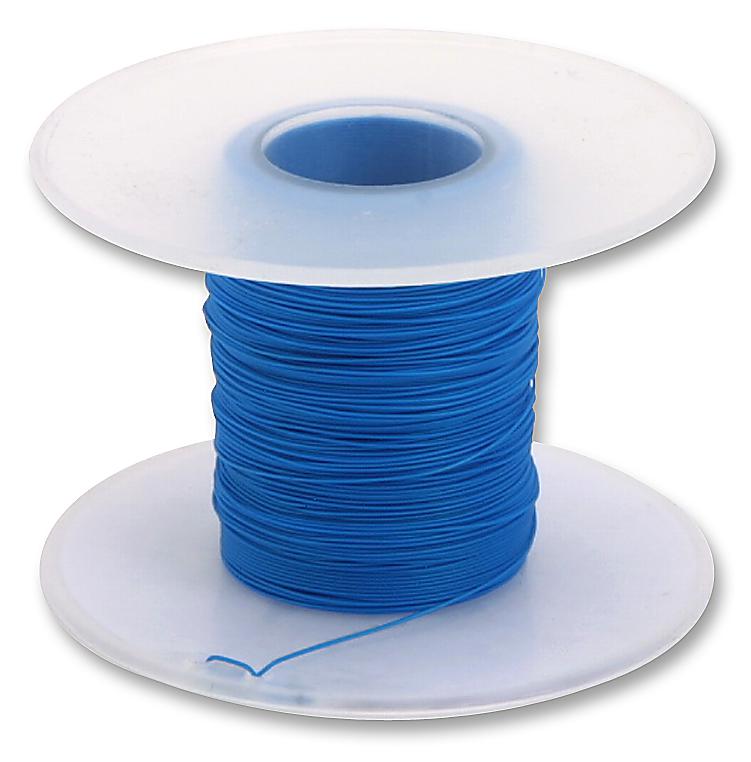

MULTICOMP-PRO 10026B Prototyping Wire
Kynar insulated prototyping wire offers high-performance, solderless connections suitable for automatic and semi-automatic wiring of computer back panels. Made with silver-plated oxygen-free copper and insulated with durable Kynar 460, it provides excellent mechanical flexibility, high temperature resistance up to 105°C, and V-0 flame retardancy. With a conductor diameter of 0.4mm and 26 AWG size, this wire ensures high conductivity with a resistance of 41.9 ohms per 1000 feet. Ideal for prototyping and electronic applications requiring reliable electrical insulation and mechanical flexibility.
MULTICOMP-PRO 10026B Prototyping Wire Specifications:
- AWG: 26
- Conductor Material: Silver plated oxygen free, high conductivity copper
- Conductor Diameter: 0.4mm
- Insulation Material: Kynar 460
- Insulation Wall Thickness: 0.15mm
- Total Diameter: 0.69mm
- Total Weight: 1.05 lbs/1,000 ft
- Conductor Resistance: 41.9 ohms per 1,000 ft at 20°C
- Service Temperature: Up to 105°C
- Max. Service Temperature: 105°C
- Hardness: Shore D 75-80
- Water Absorption: 0.04%
- Dielectric Constant: 8.4 at 60 Hz
- Flammability: V-0
- Tensile Strength at Yield: 5200 p.s.i.
- Elongation at Break: 50-250%
- Flexural Modulus: 156-260 x 10^3 p.s.i.
- Specific Gravity: 1.75
Buy the Buy Kynar Insulated Prototyping Wire Part Number 10026B Online
Discover the high-quality Kynar insulated prototyping wire designed for secure, solderless electrical connections. Made with durable silver-plated copper and Kynar 460 insulation, it withstands temperatures up to 105°C. Its flexible construction and excellent dielectric properties make it ideal for electronic prototyping, wiring computer back panels, and precision applications. Available in 26 AWG with a conductor diameter of 0.4mm, it ensures high conductivity and mechanical resilience. Purchase online today for reliable performance in your electronic projects.
Buy Kynar Insulated Prototyping Wire Part Number 10026B now and experience unmatched reliability and performance in electronic wiring and prototyping.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 10026B?
You can click on the BUY or RFQ button to purchase 10026B from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 10026B?
You can download the 10026B datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 10026B?
MULTICOMP-PRO
