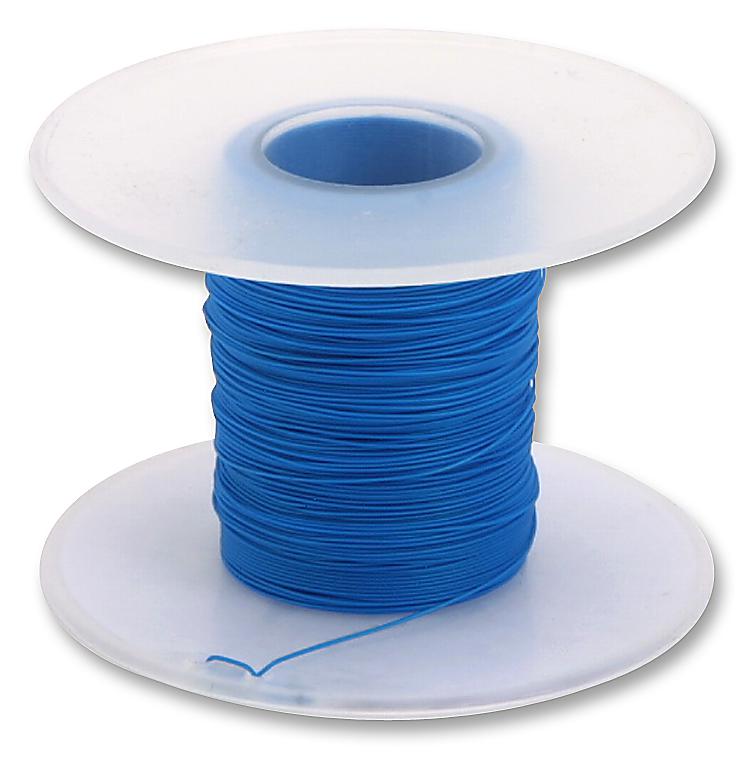

MULTICOMP-PRO 10030TB ETFE Wire
The 100-30TB is a 100-meter length of 30 AWG blue Tefzel wire with a tin-plated copper conductor and an ETFE insulation jacket. It features an operating temperature range from -90°C to +150°C, with a maximum voltage rating of 375V. The wire has a DC resistance of 365 Ω/km, and its construction ensures high thermal, electrical, and mechanical performance. Suitable for demanding industrial and electronic applications, this durable wire offers excellent flexibility, resistance to high temperatures, and reliable electrical conductivity, making it ideal for specialized wiring needs.
MULTICOMP-PRO 10030TB ETFE Wire Specifications:
- AWG Gauge: 30
- Conductor Diameter: 0.25mm
- Wall Thickness: 0.15mm
- Outside Diameter: 0.56mm
- Tolerances: 0.05mm + or -
- Conductor Resistance Per Kilometer: 365 Ω
- Operating Voltage: Max. 375V / 50Hz
- Testing Voltage: 1,500V / 50Hz
- Continuous Operating Temperature: -90°C to +150°C
- Tensile Strength: 30 N/mm2
- Elongation of Isolation: 150%
- Elongation of Conductor: 15% minimum, 20% maximum
- Current Capacity at 55°C: 3.4A
- Colour: Blue (standard), other colours available
- Insulation Resistance at all Diameters: Min. 3,000 MΩ x km
Buy the Premier Farnell Series ETFE Wire: 100-30TB
Discover the high-quality ETFE wire designed for demanding industrial and electronic applications. With a length of 100 meters, this 30 AWG wire features a tin-plated copper conductor and a durable ETFE insulation, capable of operating from -90°C up to +150°C. Its exceptional electrical resistance, flexibility, and temperature tolerance make it ideal for secure connections in challenging environments. Buy online now and ensure reliable, long-lasting performance for your electrical projects with our premium ETFE wire, engineered for durability and safety.
Get Premier Farnell 100-30TB today—built for high-temperature performance and long-lasting durability in demanding applications.
