MULTICOMP-PRO 10030TG ETFE Wire
ETFE wires are high-performance electrical cables with extruded ETFE insulation and tin-plated copper conductors. Designed for reliable operation at temperatures from -90°C to +150°C, these wires withstand voltage up to 375V and testing voltages of 1500V. Available in various gauges including 30 and 26 AWG, they feature high tensile strength, elongation in insulation and conductors, and excellent resistance properties. Suitable for demanding industrial, electrical, and aerospace applications, ETFE wires come in multiple colors to meet diverse wiring needs and comply with safety standards.
MULTICOMP-PRO 10030TG ETFE Wire Specifications:
- Conductor Diameter: 0.25mm (30 AWG), 0.32mm (28 AWG), 0.4mm (26 AWG), 0.5mm (24 AWG), 0.63mm (22 AWG)
- Outside Diameter: 0.56mm to 0.94mm depending on gauge
- Wall Thickness: 0.15mm at larger gauges, tolerances ±0.05mm
- Resistance per kilometre: 365Ω (30 AWG) to 56Ω (22 AWG)
- Operating Voltage Max: 375V / 50Hz, Testing Voltage: 1500V / 50Hz
- Ambient Temperature Range: -90°C to +150°C
- Tensile Strength: 30 N/mm², Elongation of Isolation: 150%, Elongation of Conductor: 15–20%
- Current Capacity: 3.4A (28 AWG) to 5.7A (22 AWG)
- Color Options: Black, Blue, White, Red, Orange, Yellow, Green
- Insulation Resistance: Minimum 3,000 MΩ x km
- Suitable for self-cutting and stripping tools, tested for VDE 0881

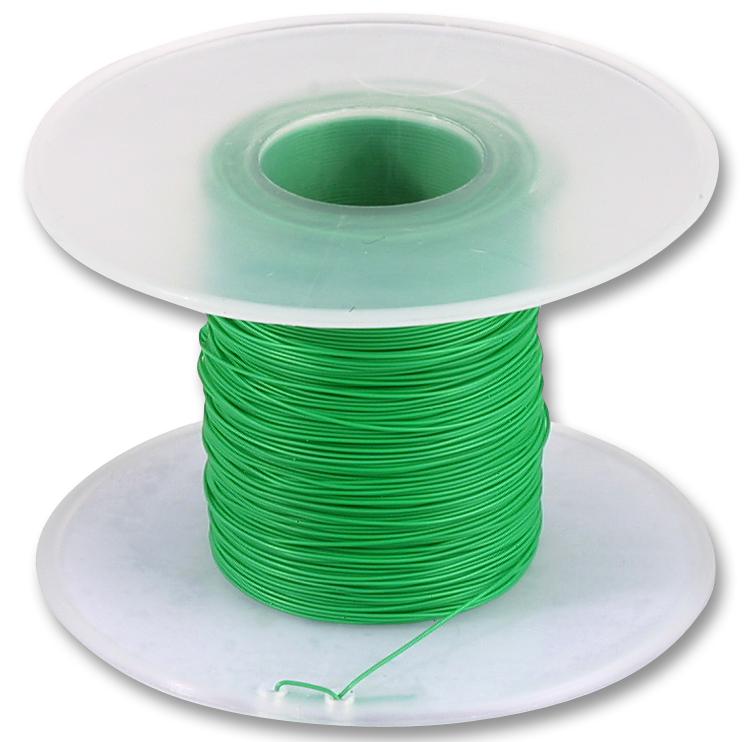

Buy the Buy Premier Farnell ETFE Wires Part Number 10030TG Online
Purchase Premier Farnell ETFE wire, model 10030TG, which offers exceptional thermal resistance from -90°C to +150°C and reliable electrical performance. This high-quality wire features tin-plated copper conductors with extruded ETFE insulation suitable for industrial, aerospace, and electronic applications. Available in 100-meter lengths and multiple colors, it ensures versatility and durability. Ideal for demanding environments, these wires support maximum operating voltages of 375V and testing voltages up to 1500V, meeting safety standards and providing long-lasting performance for complex wiring projects.
Order your Premier Farnell ETFE wire 26 AWG Red 100m today and ensure your electrical connections are durable, heat resistant, and reliable for demanding applications.
Frequently Asked Questions
Where can I buy MULTICOMP-PRO 10030TG?
You can click on the BUY or RFQ button to purchase 10030TG from an authorized MULTICOMP-PRO distributor.
How do I troubleshoot issues or seek technical support for part 10030TG?
You can download the 10030TG datasheet or visit the MULTICOMP-PRO website for support.
Who is the manufacturer of 10030TG?
MULTICOMP-PRO
