MULTICOMP PRO 1429 Flame Retardant Polyethylene Tubing

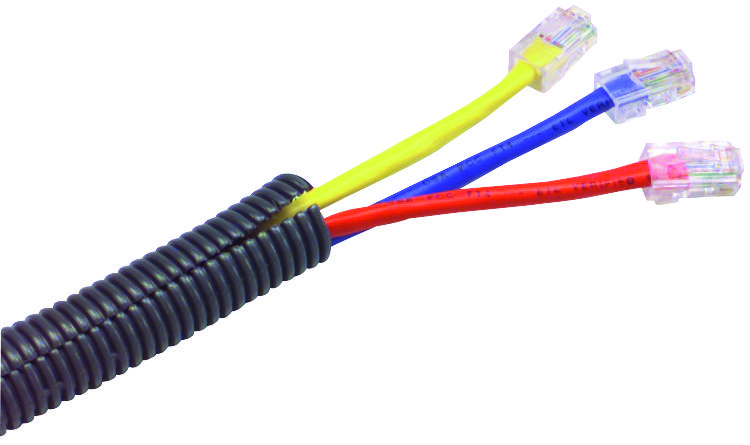

The MULTICOMP PRO 1429 is a split loom flame retardant polyethylene tubing designed for flexible conduit applications. Manufactured from a flame retardant polyethylene resin, this tubing provides excellent flexibility and abrasion resistance. It's suitable for protecting wires and cables in automotive, industrial, and marine environments. Key properties include a wide operating temperature range (-40°C to +93°C) and good chemical resistance. Tighter tolerances are available upon request for specific material needs. Cut-to-length specifications vary based on length, with tolerances of +/- 10mm for lengths up to 400mm and +/- 2.5% for longer lengths.
MULTICOMP PRO 1429 Flame Retardant Polyethylene Tubing Specifications:
- Flexibility: Excellent
- Abrasion Resistance: Good
- Chemical Resistance: Good
- Operating Temperature: -40°C to +93°C
- Specific Gravity/Density: 1.005
- Elongation@Break: 945%
- Elongation@Yield: 167%
- Tensile Strength@25C: 14.99619 MPa
- Flexural Modulus: 240 MPa
- Melting Point: 239°F (115°C)
- Notched Izod Impact Test: 10 ft lb/in
- Heat Deflection Temperature@66psi: 104°F (40°C)
- Heat Deflection Temperature@264psi: 122°F (50°C)
- Nominal ID Diameter: 1/4” (6mm)
- Dimension A ID Min: 6.02 mm
- Dimension A ID Max: 6.76 mm
- Dimension B OD Min: 9.45 mm
- Dimension B OD Max: 10.16 mm
- Dimension C Wall Min: 0.11 mm
Buy the 1429 MULTICOMP PRO Flame Retardant Polyethylene Tubing | myMectronic
Purchase the MULTICOMP PRO 1429 Split Loom Tubing securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1429?
You can click on the BUY or RFQ button to purchase 1429 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1429?
You can download the 1429 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1429?
MULTICOMP PRO
