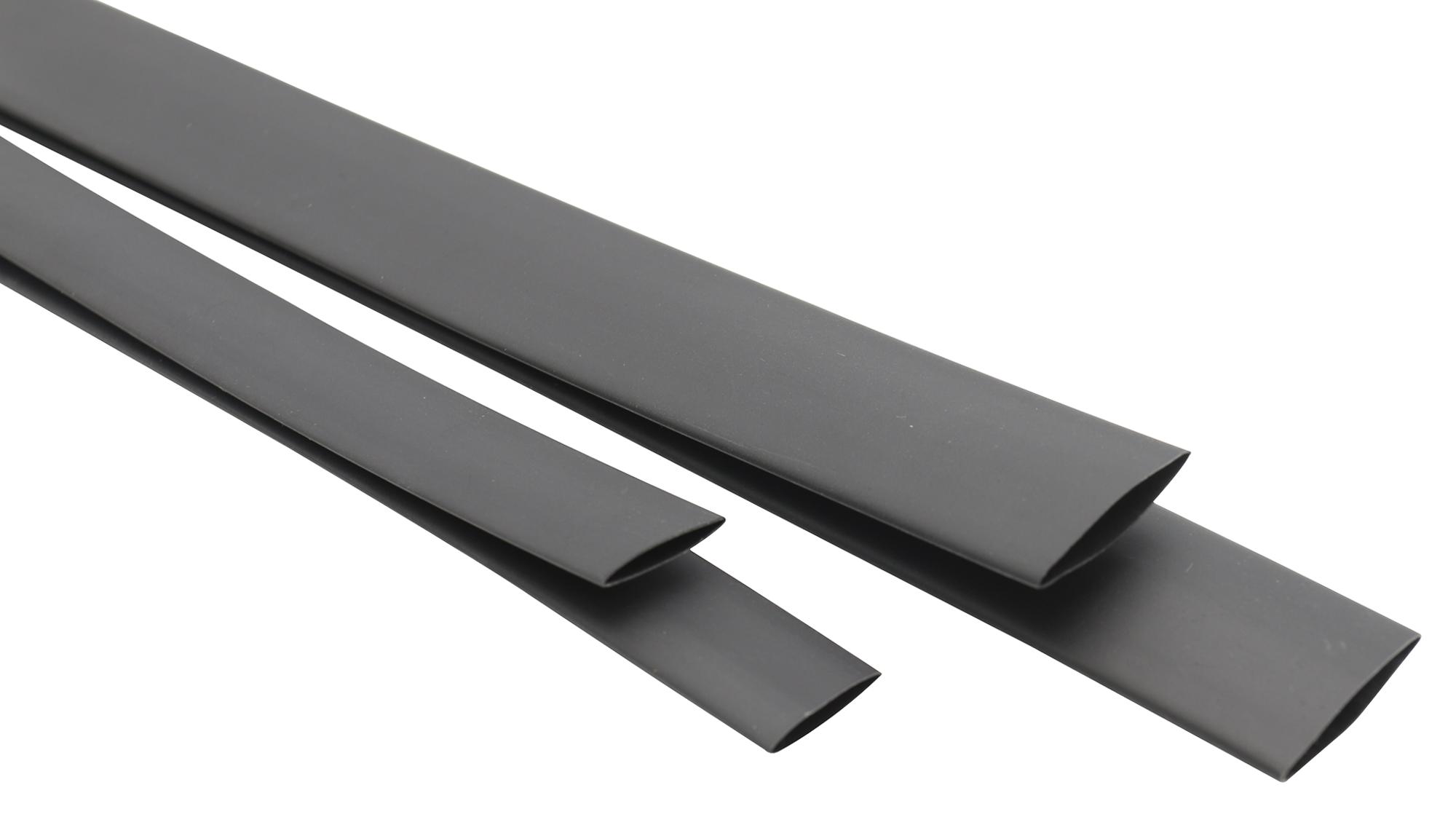

MULTICOMP PRO 15114 Heat Shrink Tubing
The flexible, halogen-free polyolefin heat shrink tubing is designed with modified radiation cross-linked material, offering excellent mechanical and electrical performance. It shrinks at low temperature, making it ideal for protecting temperature-sensitive components like PVC jacketed wires and cables. Suitable for electrical insulation, bundling, and protecting connections, the tubing features a 2:1 shrink ratio, withstands temperatures from -55°C to +125°C, and meets RoHS standards. Available in various colors, it ensures reliable performance in harsh environments and quick application with good durability.
MULTICOMP PRO 15114 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 125°C
- Shrink Ratio: 2:1
- Colors: Clear, Red, Yellow, White, Blue, Brown, Grey, Green
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Longitudinal Shrinkage: 15%
- Heat Aging Tensile Strength: 27.3 MPa at 158°C for 168 hours
- Heat Shock: No cracking or dripping at 250°C for 4 hours
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21x10^11 Ω·cm
- Copper Stability: Pass
- Copper Corrosion: No corrosion
- Property Tests: ASTM D2671, UL224, UL150
- Sizes: Ranging from 1.6mm to 50.8mm internal diameter, various wall thicknesses, supplied in reels of 5m, 25m, 50m, 100m
Buy the Prime Currents Series Heat Shrink Tubing: 15114
Purchase Prime Currents heat shrink tubing 15114 online today to ensure your electrical projects benefit from flexible, halogen-free protection. With excellent mechanical and electrical performance, this tubing shrinks at low temperatures for efficient application. Ideal for insulating, bundling, and protecting wires and cables, the tubing features a 2:1 shrink ratio, various color options, and can withstand extreme temperatures from -55°C to +125°C. Reliable and compliant with RoHS, it offers durable insulation in industrial, household, or automotive applications, ensuring safety and longevity.
Get Prime Currents heat shrink tubing 15114 today—built for electrical insulation and long-lasting durability in demanding environments.
