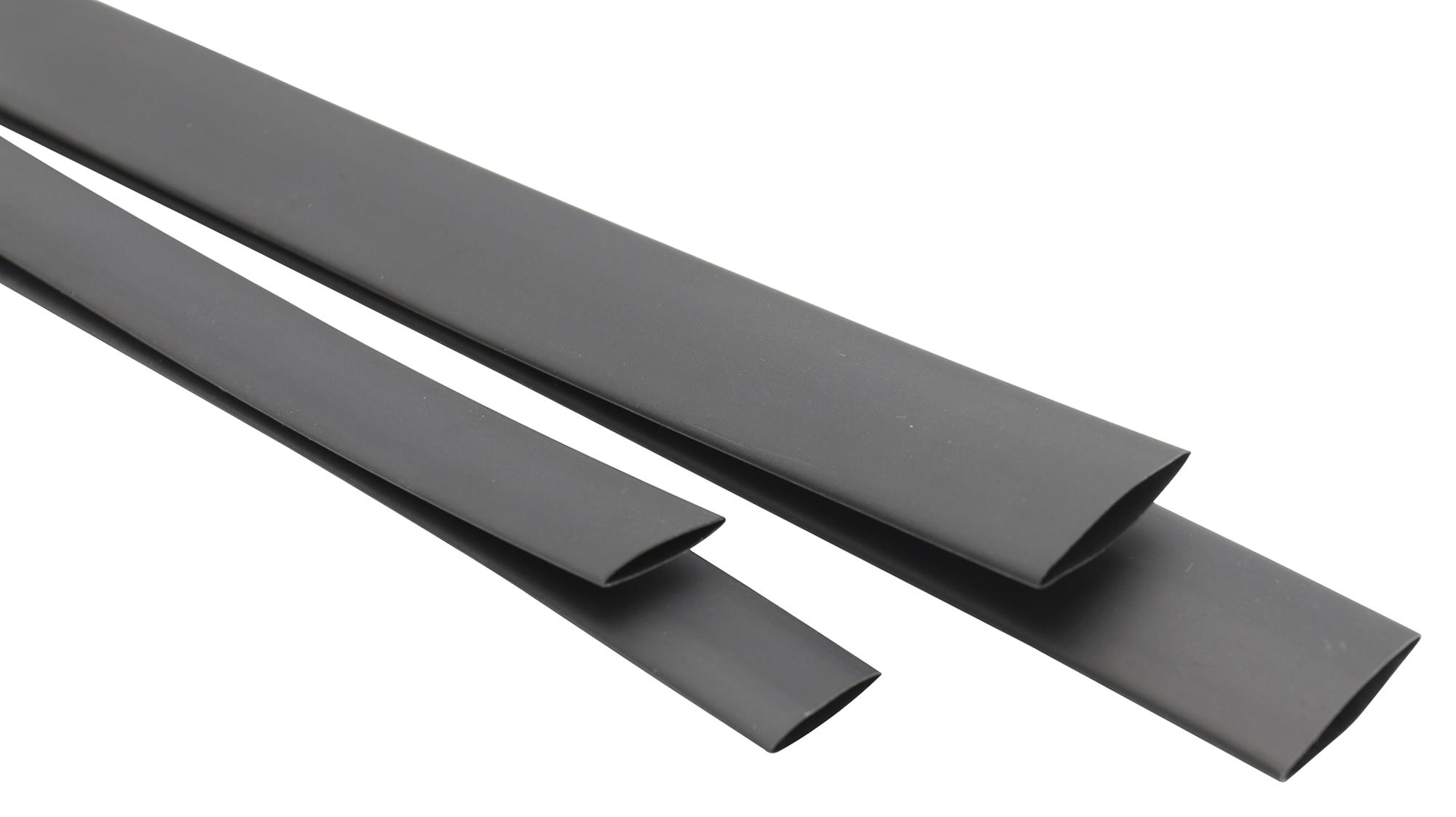

MULTICOMP PRO 15116 Heat Shrink Tubing
The heat shrink tubing is made from modified radiation cross-linked polyolefin, halogen-free, and highly flexible. It shrinks at low temperatures with a 2:1 ratio, providing excellent mechanical and electrical performance. Suitable for protecting temperature-sensitive components like PVC-jacketed wires and cables, it offers quick, uniform recovery from shrinkage, and meets RoHS compliance. The tubing is available in various sizes and colors, with good tensile strength, elongation, dielectric strength, and resistance to heat aging, making it ideal for industrial electrical insulation and bundling applications.
MULTICOMP PRO 15116 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 125°C
- Shrink Ratio: 2:1
- Colours: Clear, Red, Yellow, White, Blue, Brown, Grey, Green
- Tensile Strength: 210.4 MPa
- Elongation: 2200%
- Heat Aging Tensile Strength: 27.3 MPa after 168 hours at 158°C
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21×10^12 Ω-cm
- Dimensions: Internal wall thickness varies from 0.2 mm to 0.5 mm, depending on size; maximum internal diameter from 20.2 mm to 50.8 mm
- Certifications: Meets Sony-SS-00259, RoHS Compliant, FMVSS302 Pass
Buy the Farnell 15116 – Reliable Heat Shrink Tubing for Industrial Applications
Order Farnell 15116 heat shrink tubing online today and benefit from quick worldwide delivery, proven durability, and superior electrical insulation. Perfect for protecting wiring, cables, and electronic components—this reliable tubing shrinks evenly at low temperatures with a 2:1 ratio, ensuring a snug fit around temperature-sensitive parts. Its halogen-free design and high mechanical strength make it ideal for industrial, automotive, and aerospace applications. Shop now to secure top-quality, compliant heat shrink tubing for your project needs, ensuring long-lasting performance and safety.
Buy Farnell 15116 now and experience unmatched flexibility, low-temperature shrinkage, and excellent electrical insulation for industrial wiring projects.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 15116?
You can click on the BUY or RFQ button to purchase 15116 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 15116?
You can download the 15116 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 15116?
MULTICOMP PRO
