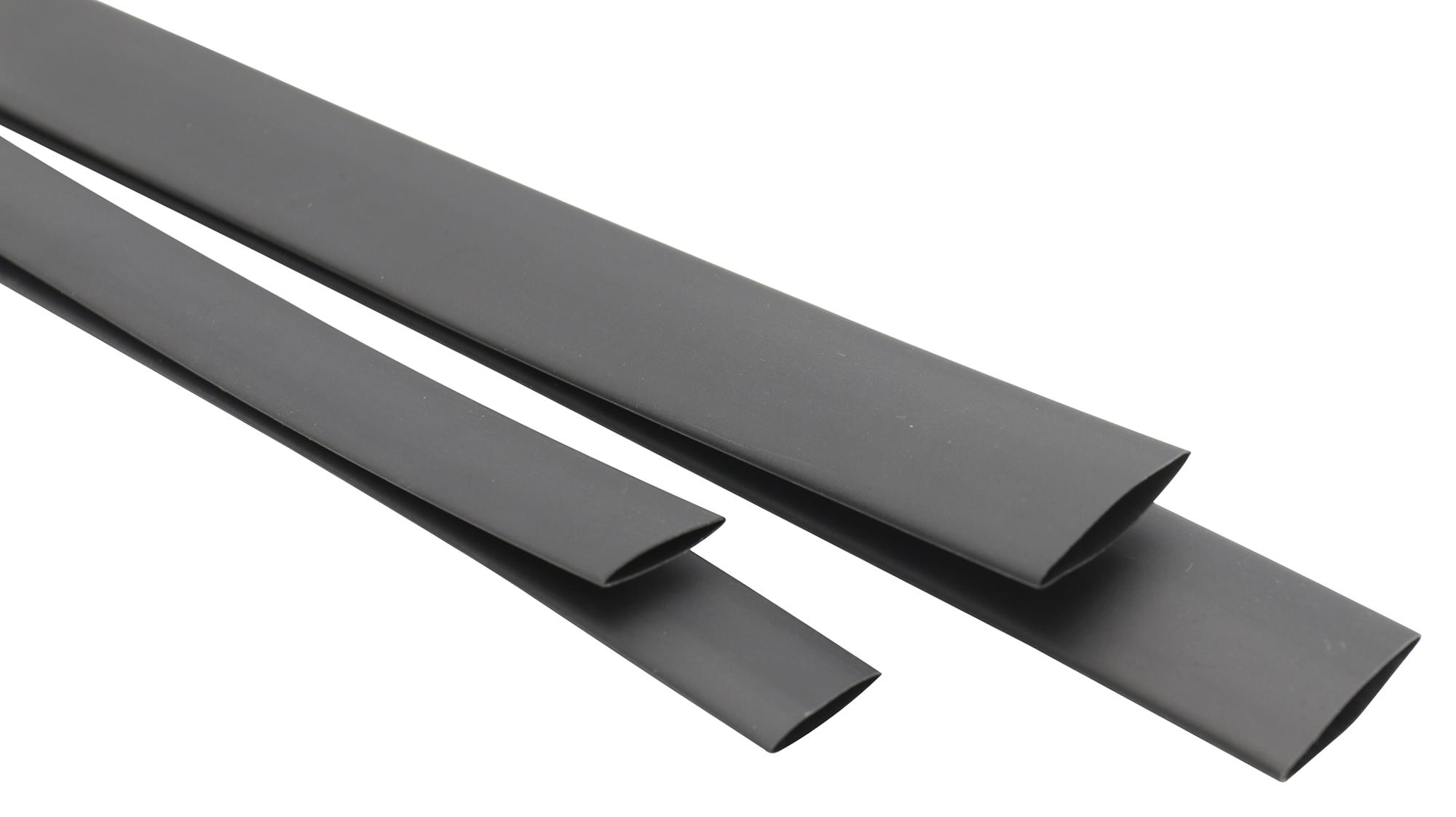

MULTICOMP PRO 15117 Heat Shrink Tubing
This heat shrink tubing features a flexible, halogen-free polyolefin construction designed for cable and wire protection. It shrinks at low temperatures with a 2:1 ratio, providing reliable mechanical and electrical insulation. Suitable for sensitive components, the tubing meets RoHS standards and is resistant to heat aging, withstanding temperatures from -55°C to +125°C. Available in multiple colors and sizes, it offers excellent tensile strength, elongation, and dielectric properties, making it ideal for electrical insulation, wire bundling, and protection in various industrial applications.
MULTICOMP PRO 15117 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 125°C
- Shrink Ratio: 2:1
- Colours: Clear, Red, Yellow, White, Blue, Brown, Grey, Green
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Volume Resistivity: 21 x 10^12 Ω·cm
- Dielectric Strength: 215 kV/mm
- Heat Aging Tensile Strength: 27.3 MPa after 168 hours at 158°C
- UL Flammability: Pass
- UL Copper Stability: Pass
- Part Number: 15117
- Inner Wall Thickness: 0.56 mm
- Inner Diameter after recovery: 12.7 mm
- Material: Cross-linked polyolefin
- Application: Insulation, wire protection, bundling
Buy the Premier Farnell Series prO-POWER Heat Shrink Tubing: 15117
Purchase the Premier Farnell prO-POWER 15117 heat shrink tubing online for reliable electrical insulation and wire protection. Its flexible, halogen-free, cross-linked polyolefin design ensures quick shrinking at lower temperatures, providing excellent mechanical and electrical performance. Suitable for sensitive components, it withstands temperatures from -55°C to +125°C and is RoHS compliant. Available in multiple sizes and colors, this tubing offers high tensile strength, elongation, and dielectric properties, making it an essential choice for industrial wiring, electrical insulation, and cable bundling applications. Order now to enhance your electrical projects with quality and efficiency.
Order your Premier Farnell Series prO-POWER 15117 heat shrink tubing today and give your projects the dependable, flexible insulation they deserve.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 15117?
You can click on the BUY or RFQ button to purchase 15117 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 15117?
You can download the 15117 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 15117?
MULTICOMP PRO
