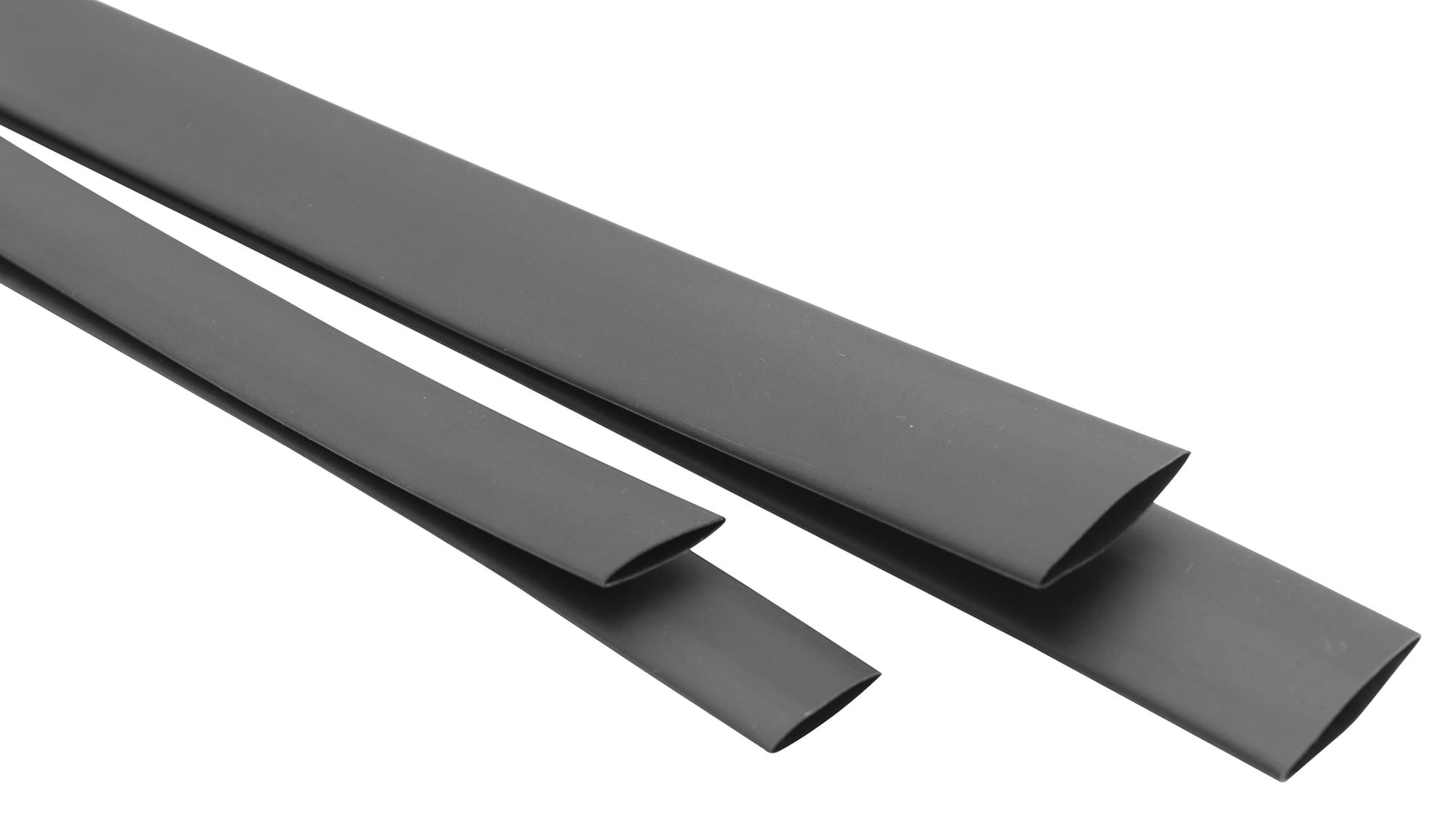

MULTICOMP PRO 15121 Heat Shrink Tubing
This flexible, halogen-free polyolefin heat shrink tubing is designed for electrical insulation and protection of temperature-sensitive components. It shrinks at low temperatures, providing excellent mechanical and electrical performance. Suitable for wire and cable insulation, it meets RoHS standards and complies with Sony-SS-00259. Available in various sizes with a 2:1 shrink ratio, the tubing features good elongation, tensile strength, and dielectric properties, ensuring durability and safety in industrial electrical applications.
MULTICOMP PRO 15121 Heat Shrink Tubing Specifications:
- Operating Temperature: -55°C to +125°C
- Min. Shrink Temperature: 70°C
- Full Recovery Temperature: 125°C
- Shrink Ratio: 2:1
- Colors: Clear, Red, Yellow, White, Blue, Brown, Grey, Green
- Tensile Strength: 210.4 MPa
- Ultimate Elongation: 2200%
- Longitudinal Shrinkage: 15%
- Heat Aging Tensile Strength: 27.3 MPa
- Heat Aging Elongation: 2100%
- Dielectric Strength: 215 kV/mm
- Volume Resistivity: 21 × 10^12 Ω·cm
- Flammability: Passes FMVSS302
- Material: Modified radiation cross-linked polyolefin
- Wall Thickness (After Recovery): 0.56 mm
- Internal Diameter (Max): 50.8 mm
- Part Number: 15121
Buy the Premier Polyolefin Heat Shrink – Reliable Electrical Insulation for Industrial Applications
Purchase the Premier Series15121 Green Heat Shrink Tubing online now to benefit from reliable electrical insulation and mechanical protection. Designed for industrial applications, this high-quality polyolefin tubing shrinks to 2:1 ratio at low temperatures, providing excellent durability and electrical performance. Perfect for wire and cable insulation, it meets RoHS standards and offers variety in sizes and colors. Secure your supply today for quick, efficient, and safe installation in all your electrical and electronic projects.
Order your Premier Series15121 Green Heat Shrink Tubing today and ensure durable, safe electrical insulation for your industrial projects.
