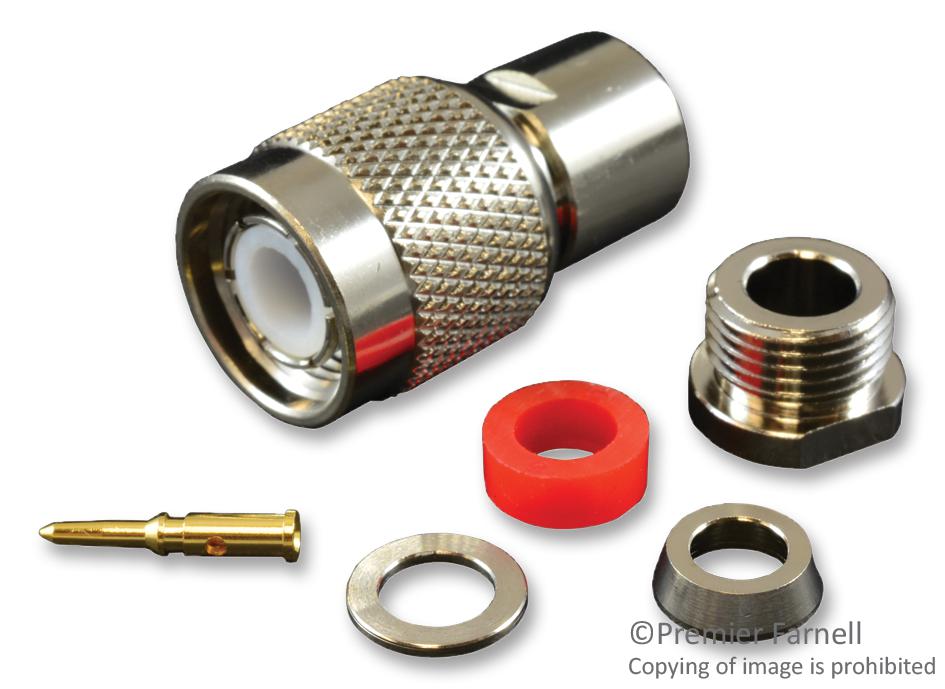

MULTICOMP PRO 1536 TNC Male Clamp Connector
The MULTICOMP PRO 1536 TNC male clamp connector is a precision-engineered component designed for reliable RF signal transmission. With a 50Ω impedance and a frequency range of 0-7 GHz, it's ideal for applications in telecommunications, test and measurement equipment, and broadcast systems. Constructed with brass and nickel-plated components, along with a gold-plated pin and PTFE dielectric, this connector ensures excellent signal integrity and durability. Compatible with a wide range of cables, including RG-58, 58A, and Belden 8240, the 1536 provides a versatile solution for various RF connectivity needs.
MULTICOMP PRO 1536 TNC Male Clamp Connector Specifications:
- Impedance: 50Ω
- Working Voltage: 500V RMS @ Sea Level
- Frequency Range: 0-7 GHz
- Insertion Loss: ≤ -0.2dB @ 3 GHz
- VSWR Max: 1.3:1 @ 3 GHz
- Compatible Cables: RG-58, 58A, 58C, 141, 141A, 400/U, Belden 8240, 8259, 8262, 9201, 9203, 9310, 9311, Comm/ Scope 0268, Cushcraft Ultralink TL92463E
- Body Material: Brass, Nickel Plated
- Pin Material: Brass, Gold Plated
- Dielectric Material: PTFE
- Shell Material: Brass, Nickel Plated
- Gasket Material: S.I. Rubber
- Suggested Crimp: 0.068
