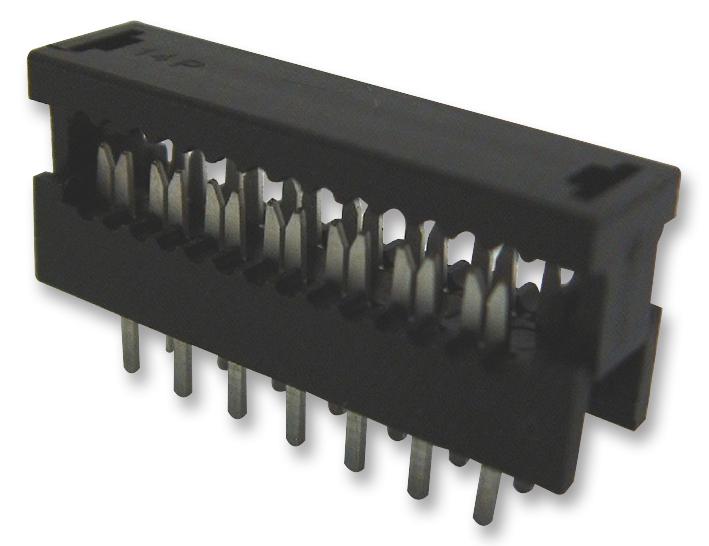

MULTICOMP PRO 1565522 2.54mm IDC Plug Connector
The MULTICOMP PRO 1565522 is a 2.54mm IDC (Insulation Displacement Connector) plug DIP (Dual In-line Package) type connector. It is designed for applications requiring a secure and reliable connection between printed circuit boards and other components. The connector features gold-plated copper alloy contacts for improved conductivity and corrosion resistance, and a PBT insulator for insulation and structural integrity. It is suitable for a wide range of electronic applications, including industrial automation, instrumentation, and consumer electronics.
MULTICOMP PRO 1565522 2.54mm IDC Plug Connector Specifications:
- Current Rating: 1 A AC / DC
- Voltage Rating: 30V AC / DC
- Max. Contact Resistance: 20mΩ
- Min. Insulation Resistance: 1,000MΩ
- Withstanding Voltage: 500 V AC / minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: PBT, black
- Contact Material: Copper alloy
- Contact Finish: Selective gold plated
- Positions: 10
- A(mm): 18
Buy the 1565522 MULTICOMP PRO 2.54mm IDC Plug Connector | myMectronic
Purchase the MULTICOMP PRO 1565522 2.54mm IDC Plug DIP Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1565522?
You can click on the BUY or RFQ button to purchase 1565522 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1565522?
You can download the 1565522 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1565522?
MULTICOMP PRO
