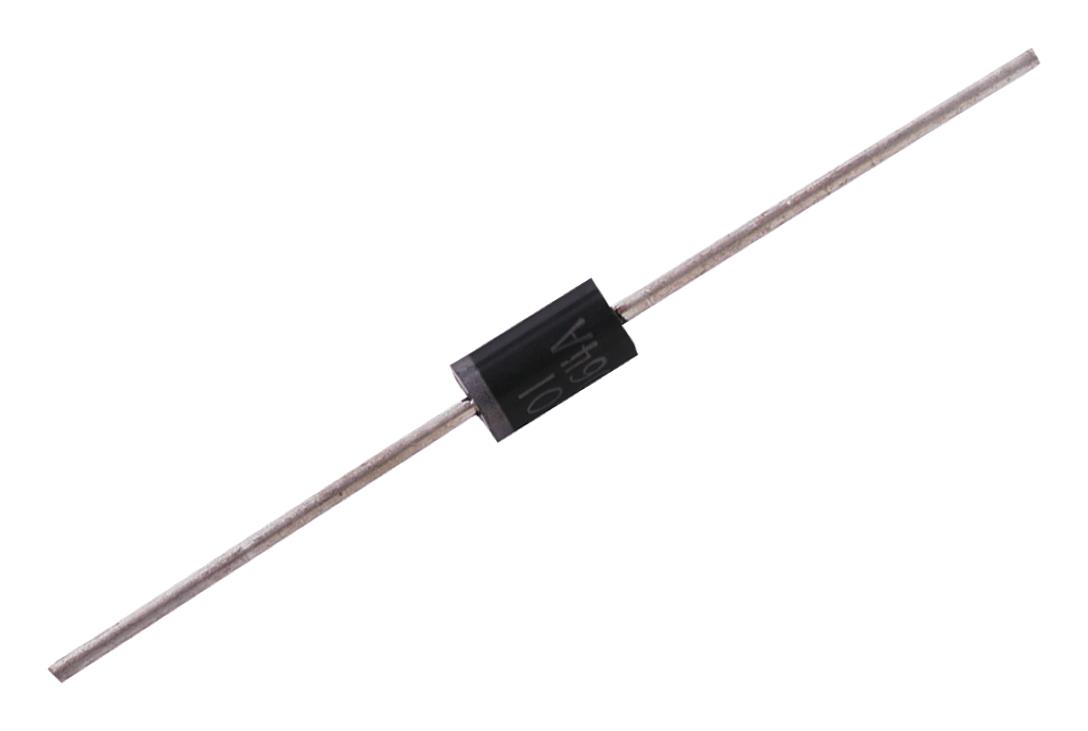

MULTICOMP PRO 15KEG27A Uni-directional Transient Voltage Suppression Diode
The MULTICOMP PRO 1.5KEG27A is a robust uni-directional transient voltage suppression (TVS) diode engineered to safeguard sensitive electronic components from damaging voltage transients. Its glass passivated junction provides fast response time and excellent clamping capability. Ideal for applications in power supplies, automotive electronics, and industrial control systems, this diode offers reliable protection against overvoltage events. The 1.5KEG series is available in both uni-directional and bi-directional configurations to suit various circuit designs.
MULTICOMP PRO 15KEG27A Uni-directional Transient Voltage Suppression Diode Specifications:
- Peak Power Dissipation at Ta= 25°C Tp= 1ms: 1500W
- Peak Forward Surge Current, 8.3mS Single Half Sine-Wave: 200A
- Steady State Power Dissipation at Tl = 75°C: 5W
- Maximum Instantaneous Forward Voltage: See Note 3
- Operating Junction Temperature Range: -55 to +150°C
- Storage Temperature Range: See Datasheet
- Reverse Breakdown Voltage Min: 23.1V
- Reverse Breakdown Voltage Max: 28.4V
- Max Reverse Leakage at Vr: 5μA
- Max Clamping Voltage at Ippm: 37.5V
- Max Peak Pulse Surge Current: 40A
- Max Voltage Temp: -0.096mV/°C
Buy the 1.5KEG27A MULTICOMP PRO Uni-directional Transient Voltage Suppression Diode | myMectronic
Securely purchase the MULTICOMP PRO 1.5KEG27A online and ensure the protection of your valuable electronic circuits.
