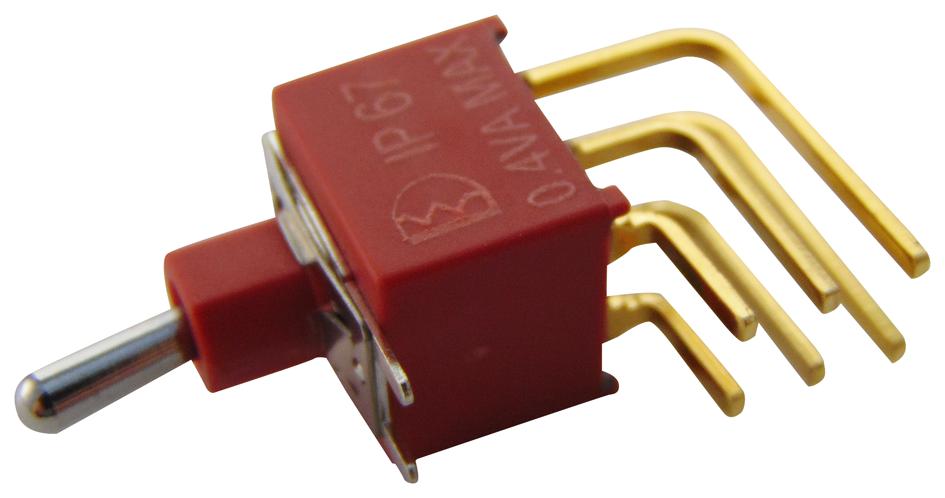

MULTICOMP-PRO 1AD1T2B4M7RE Sub-Miniature Toggle Switch
This high-quality sub-miniature toggle switch offers reliable performance with quick switching capabilities suitable for industrial and electronics applications. Designed for PCB mounting, it features various contact configurations, including SPDT and DPDT, with a rated mechanical life of 30,000 cycles. Constructed from durable materials like brass, stainless steel, and nylon, it withstands temperatures from -30°C to +85°C and offers excellent insulation resistance. Ideal for automation, control panels, and other electronic systems requiring compact, durable switching solutions.
MULTICOMP-PRO 1AD1T2B4M7RE Sub-Miniature Toggle Switch Specifications:
- Contact Rating: 0.4 volt-amps (VA) max. at 20V max. (AC or DC)
- Mechanical Life: 30,000 make-and-break cycles
- Contact Resistance: 10 mΩ max. initial at 2 to 4V DC
- Insulation Resistance: 1,000 MΩ
- Dielectric Strength: 1,000 Vrms at sea level
- Operating Temperature: -30°C to +85°C
- Materials: Glass filled nylon 66, heat stabilized; Brass, chrome plated with internal O-ring seal; Brass or steel, tin plated; Stainless steel, Copper alloy with gold plating
- Pole Options: SPDT, DPDT, vertical and horizontal mounting, PCB mount
- Actuator Material: PVC, epoxy seal options available
- Soldering Process: Manual soldering at 350°C for 5 seconds, wave soldering at 260°C for 5 seconds
- Dimensions: Various millimeter and inch measurements for mounting and connector size
- Sealing: Epoxy seal standard for IP67 protection
- Standards: RoHS compliant
Buy the Multicomp Pro 1AD1T2B4M7RE – Reliable DPDT Switch for Industrial Applications
Order the reliable Sub-Miniature Toggle Switch from Multicomp Pro online today. Designed for durability and precise control, this switch supports various configurations, ensuring seamless integration into automation, control panels, and electronic systems. Made with high-quality materials like brass and stainless steel, it offers excellent temperature resistance and high insulation resistance. Featuring a compact design, epoxy sealing for IP67 protection, and tested for 30,000 cycles, it guarantees long-lasting performance in demanding industrial environments. Purchase now for fast delivery and trusted quality.
Get Multicomp Pro 1AD1T2B4M7RE today—built for precision, durability, and reliable switching in industrial and control systems.
