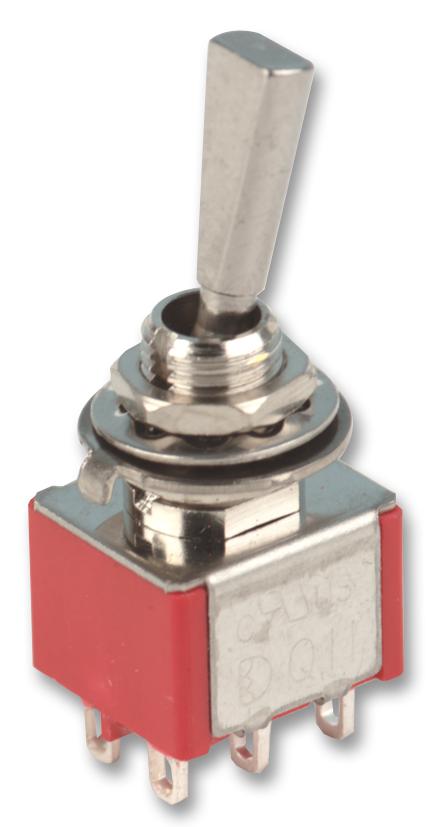

MULTICOMP PRO 1M41T6B11M1QE 4PDT Toggle Switch
The MULTICOMP PRO 1M41T6B11M1QE is a miniature 4-pole, double-throw (4PDT) toggle switch engineered for reliable performance in a wide range of industrial and commercial applications. This switch boasts a mechanical life of 40,000 make-and-break cycles, ensuring durability and longevity. It features various switch functions, including ON-NONE-ON, ON-OFF-ON, and momentary (MOM) options, catering to diverse control requirements. The switch's construction incorporates high-quality materials such as diallyl phthalate (DAP) for the case, brass with chrome plating for the actuator, and stainless steel for the housing, ensuring robustness and resistance to environmental factors. Available with a range of bushing options and termination styles, the 1M41T6B11M1QE provides flexibility in integration into different systems. It is commonly used in control panels, instrumentation, and automation equipment where reliable switching functionality is essential.
MULTICOMP PRO 1M41T6B11M1QE 4PDT Toggle Switch Specifications:
- Mechanical Life: 40,000 make-and-break cycles
- Contact Resistance: 10mΩ max. initial @ 2-4V DC 100mA
- Insulation Resistance: 1,000MΩ min.
- Dielectric Strength: 1,000V rms min. @ sea level
- Operating Temperature: -30°C to +85°C
- Case Material: Diallyl phthalate (DAP)
- Actuator Material: Brass, chrome plated
- Bushing Material: Brass, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass, tin plated
- Contact/Terminals Material: Brass, Silver or gold plated
Buy the 1M41T6B11M1QE MULTICOMP PRO 4PDT Toggle Switch | myMectronic
Purchase the MULTICOMP PRO 1M41T6B11M1QE 4PDT Toggle Switch securely and efficiently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1M41T6B11M1QE?
You can click on the BUY or RFQ button to purchase 1M41T6B11M1QE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1M41T6B11M1QE?
You can download the 1M41T6B11M1QE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1M41T6B11M1QE?
MULTICOMP PRO
