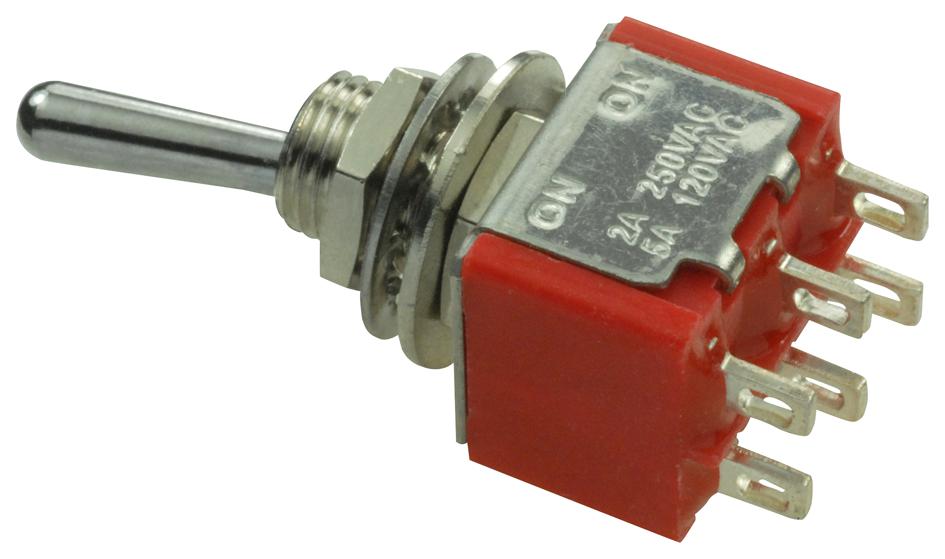

MULTICOMP PRO 1MD1T1B1M1QE Miniature Double Pole Double Throw Switch
The MULTICOMP PRO 1MD1T1B1M1QE is a miniature double pole double throw (DPDT) toggle switch engineered for reliable performance in a compact form factor. Constructed with durable materials like diallyl phthalate (DAP) for the case, brass for the actuator and bushing, and stainless steel for the housing, this switch is designed to withstand demanding environments. The silver or gold-plated contacts ensure low contact resistance and excellent conductivity. It's commonly used in control panels, instrumentation, and various automation systems where precise and dependable switching is required. The switch offers multiple switch functions, including ON-NONE-ON, ON-NONE-MOM, ON-OFF-ON, and MOM-OFF-MOM configurations, providing flexibility in circuit design. Available with various bushing and termination options, the 1MD1T1B1M1QE caters to a wide range of mounting and wiring requirements.
MULTICOMP PRO 1MD1T1B1M1QE Miniature Double Pole Double Throw Switch Specifications:
- Mechanical Life: 40,000 make-and-break cycles
- Contact Resistance: 10mΩ max. initial @ 2-4V DC 100mA
- Insulation Resistance: 1,000MΩ min.
- Dielectric Strength: 1,000V rms min. @ sea level
- Operating Temperature: -30°C to +85°C
- Case Material: Diallyl phthalate (DAP)
- Actuator Material: Brass, chrome plated
- Bushing Material: Brass, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass, tin plated
- Contact/Terminals Material: Brass, Silver or gold plated
Buy the 1MD1T1B1M1QE MULTICOMP PRO Miniature Double Pole Double Throw Switch | myMectronic
Purchase the MULTICOMP PRO 1MD1T1B1M1QE securely and efficiently for your next project.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1MD1T1B1M1QE?
You can click on the BUY or RFQ button to purchase 1MD1T1B1M1QE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1MD1T1B1M1QE?
You can download the 1MD1T1B1M1QE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1MD1T1B1M1QE?
MULTICOMP PRO
