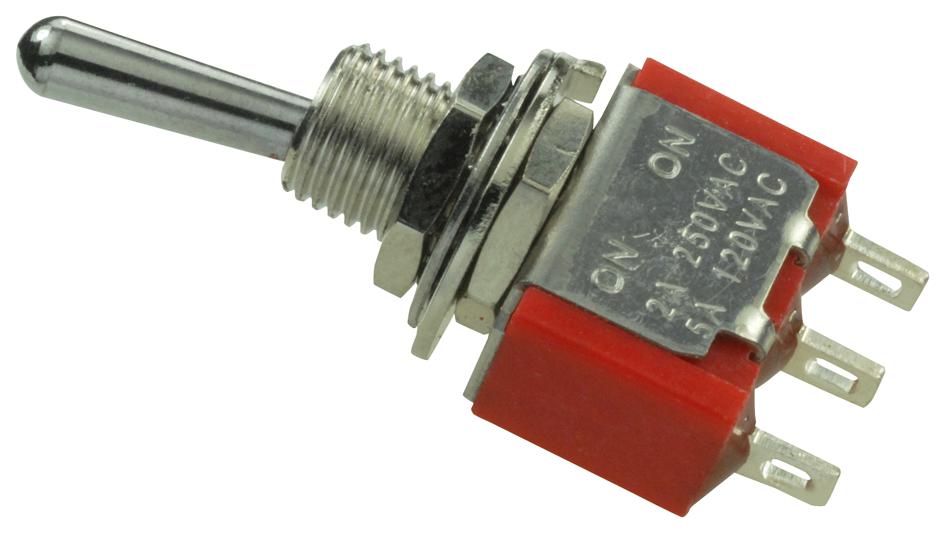

MULTICOMP PRO 1MS1T1B1M1QE Miniature Toggle Switch
The MULTICOMP PRO 1MS1T1B1M1QE is a miniature toggle switch offering a compact and reliable solution for electrical switching applications. Constructed with durable materials like diallyl phthalate (DAP) for the case and brass for the actuator and terminals, this switch is designed for longevity and consistent performance. Available in single-pole (SP), double-pole (DP), three-pole (3P), and four-pole (4P) configurations, and various switch functions including ON-OFF-ON, ON-ON, and momentary (MOM), it caters to diverse control and automation needs. The switch boasts a mechanical life of 40,000 cycles, ensuring reliable operation over extended periods. It is commonly used in control panels, industrial equipment, and automation systems where a compact and dependable switching solution is required.
MULTICOMP PRO 1MS1T1B1M1QE Miniature Toggle Switch Specifications:
- Mechanical Life: 40,000 make-and-break cycles
- Contact Resistance: 10mΩ max. initial @ 2-4V DC 100mA
- Insulation Resistance: 1,000MΩ min.
- Dielectric Strength: 1,000V rms min. @ sea level
- Operating Temperature: -30°C to +85°C
- Case Material: Diallyl phthalate (DAP)
- Actuator Material: Brass, chrome plated
- Bushing Material: Brass, nickel plated
- Housing Material: Stainless steel
- Switch Support Material: Brass, tin plated
- Contact/Terminals Material: Brass, Silver or gold plated
