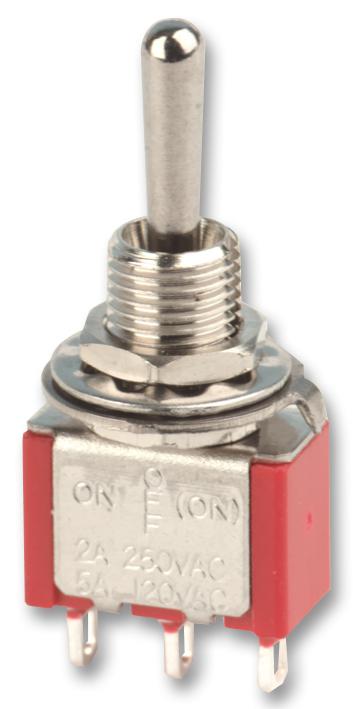

MULTICOMP PRO 1MS2T1B1M1QE SPDT Toggle Switch
The MULTICOMP PRO 1MS2T1B1M1QE is a miniature SPDT (Single Pole Double Throw) toggle switch engineered for reliable performance in a variety of electronic applications. Constructed with a diallyl phthalate (DAP) case, brass actuators and bushings, a stainless steel housing, and silver or gold-plated terminals, this switch provides excellent durability and electrical conductivity. It features a mechanical life of 40,000 cycles and is designed for PCB (Printed Circuit Board) mounting, making it ideal for integration into electronic devices and control panels. The switch's compact size and robust design make it suitable for applications ranging from consumer electronics to industrial automation.
MULTICOMP PRO 1MS2T1B1M1QE SPDT Toggle Switch Specifications:
- Contact Rating: Dependent upon content material
- Mechanical Life: 40,000 make and break cycles
- Max. Contact Resistance: 10mΩ
- Initial Voltage: 2 to 4V DC
- Current: 10mA for both silver and gold plated contacts
- Insulation Resistance: 1,000MΩ
- Dielectric Strength: 1,000Vrms at sea level
- Operating Temperature: -30°C to +85°C
- Case: Diallyl phthalate (DAP) (UL94v-0)
- Actuator: Brass, chrome plated
- Bushing: Brass, nickel plated
- Housing: Stainless steel
- Switch Support: Brass, tin plated
- Terminal/Contact: Silver or gold plated
Buy the 1MS2T1B1M1QE MULTICOMP PRO SPDT Toggle Switch | myMectronic
Purchase the MULTICOMP PRO 1MS2T1B1M1QE SPDT Toggle Switch securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1MS2T1B1M1QE?
You can click on the BUY or RFQ button to purchase 1MS2T1B1M1QE from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1MS2T1B1M1QE?
You can download the 1MS2T1B1M1QE datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1MS2T1B1M1QE?
MULTICOMP PRO
