The Silicon Epitaxial Planar Small Signal Diode is known for fast switching capabilities and reliable performance in electronic circuits. Featuring the SOD 323 package, it supports peak reverse voltages up to 100 V and average rectified currents of 150 mA. This diode exhibits a low forward voltage of approximately 1 V at 10 mA and a reverse current as low as 5 pA at 75 V. It is suitable for high-speed switching, signal rectification, and protection circuits, offering a compact design ideal for space-constrained applications. With a maximum junction temperature of 150°C, it ensures durable operation under various environmental conditions.
MULTICOMP PRO 1N4148WS Small Signal Diode Specifications:
Peak Reverse Voltage: 100 V
Reverse Voltage: 75 V
Average Rectified Current: 150 mA
Surge Forward Current: 350 mA
Power Dissipation: 200 mW
Junction Temperature: 150°C
Storage Temperature: -65 to +150°C
Forward Voltage: approximately 1 V at 10 mA
Reverse Current: 5 pA at 75 V
Capacitance: 4 pF
Thermal Resistance: 650 °C/W

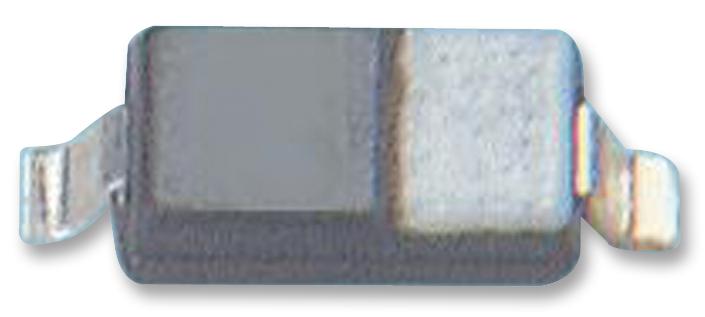

Buy the Multicomp Series Small Signal Diode: 1N4148WS
Order the Small Signal Diode today and experience fast switching, low reverse current, and a compact design ideal for signal rectification and electronic circuit protection. Perfectly suited for high-speed applications, this diode supports peak reverse voltages up to 100 V and averages 150 mA current, ensuring durability and reliable performance in your projects. Efficient and space-saving, it is a crucial component for a wide range of electronic devices and circuit designs. Buy online now for fast delivery and bulk availability.
Get Multicomp 1N4148WS today—built for high-speed switching and reliable signal protection.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 1N4148WS?
You can click on the BUY or RFQ button to purchase 1N4148WS from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 1N4148WS?
You can download the 1N4148WS datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 1N4148WS?
MULTICOMP PRO
