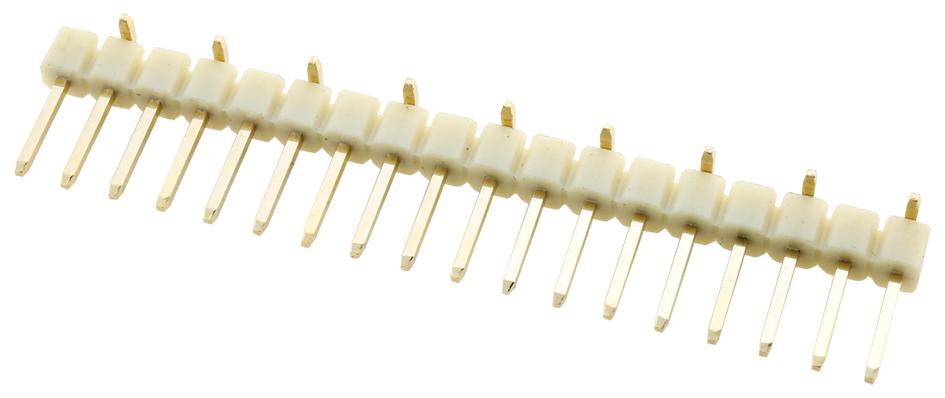

MULTICOMP PRO 2211SM18GB1TB Vertical Pin Header
This 2.54mm vertical SMD pin header features a staggered, single row design suitable for compact electronic assemblies. It supports currents up to 3A, operates at 250V AC/DC, and maintains excellent insulation resistance of at least 1000MΩ. Crafted from high-temperature nylon with gold or tin plating, it ensures reliable electrical contact and durability in a wide temperature range from -40°C to +105°C. Ideal for PCB connections requiring robust, space-efficient headers with high current and voltage ratings, suitable for various industrial and electronic applications.
MULTICOMP PRO 2211SM18GB1TB Vertical Pin Header Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials and Finish: High Temp. Plastic (Nylon 6T UL94V-0), gold or tin plated copper alloy
- Insulator Colour: Ivory
- Contact Plating: Gold or Tin
- Dimensions: 2.54mm pitch, various lengths for different number of positions, compatible with SMD mounting, designed for reliable PCB connections
Buy the Multicomp 2211SM18G – Reliable Pin Header for Industrial Applications
Purchase the Multicomp 2211SM18G vertical pin header online today for your electronics projects. Made with durable high-temperature nylon and plated for reliable contact, it supports up to 3A current and 250V voltage. Its compact, staggered single row design ensures easy PCB mounting and space efficiency. Suitable for industrial and electronic applications, the header is rated for -40°C to +105°C operation, offering excellent insulation resistance and withstand voltage. Get high-quality, dependable connections delivered directly to your door.
Order your Multicomp 2211SM18G series high-current, reliable pin header today and enhance the durability of your electronic assemblies with trusted connection solutions.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2211SM18GB1TB?
You can click on the BUY or RFQ button to purchase 2211SM18GB1TB from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2211SM18GB1TB?
You can download the 2211SM18GB1TB datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2211SM18GB1TB?
MULTICOMP PRO
