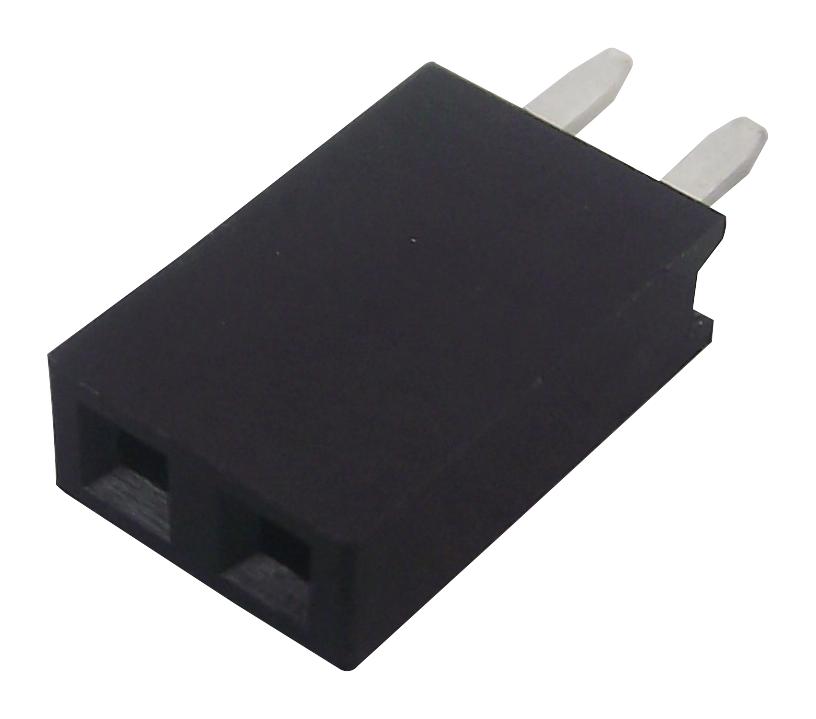

MULTICOMP PRO 2212S02SG85 PCB Connector
The 2212S series by Multicomp Pro features 2.54mm pitch, single-row PCB connectors with vertical mounting options. These connectors are rated for 3A current and 250VAC/DC voltage, suitable for a variety of industrial applications. They are made from copper alloy with selectively gold-plated contacts for reliable electrical connectivity. The series offers configurations with 2 to 24 pins, a maximum contact resistance of 20 milliohms, and an insulation resistance of at least 1000 megaohms. An 8.5mm height header version is available. Multicomp Pro products are highly rated with a 4.6 out of 5-star rating, backed by a 12-month limited warranty, and 96% of customers would recommend them to others.
MULTICOMP PRO 2212S02SG85 PCB Connector Specifications:
- Pitch: 2.54mm
- Number of Contacts: 2 to 24
- Current Rating: 3A
- Voltage Rating: 250V AC/DC
- Contact Resistance: Max. 20mΩ
- Insulation Resistance: Min. 1,000MΩ
- Operating Temperature Range: -40°C to +105°C
- Material: Copper alloy
- Insulator: PBT
- Finish: Selective gold plated
- Height: 8.5mm
- RoHS Compliant: Yes
- Voltage Withstand: 600V AC for one minute
Buy the Multicomp 2212S Series – Reliable PCB Connectors for Industrial Applications
Purchase the Multicomp 2212S series PCB socket online today to benefit from reliable, high-quality, single-row connectors with gold-plated contacts, rated for 3A and 250V. These connectors feature a 2.54mm pitch, are suitable for various industrial and electronic projects, and come in multiple configurations from 2 to 24 ways. Designed with copper alloy and PBT insulators, they ensure excellent electrical performance and durability. Take advantage of fast delivery, competitive pricing, and the peace of mind that comes with trusted brand quality. Add to cart now to enhance your PCB assembly!
Order your Multicomp 2212S series PCB socket today and ensure dependable connections for your industrial projects with high-quality, gold-plated contacts.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2212S02SG85?
You can click on the BUY or RFQ button to purchase 2212S02SG85 from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2212S02SG85?
You can download the 2212S02SG85 datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2212S02SG85?
MULTICOMP PRO
