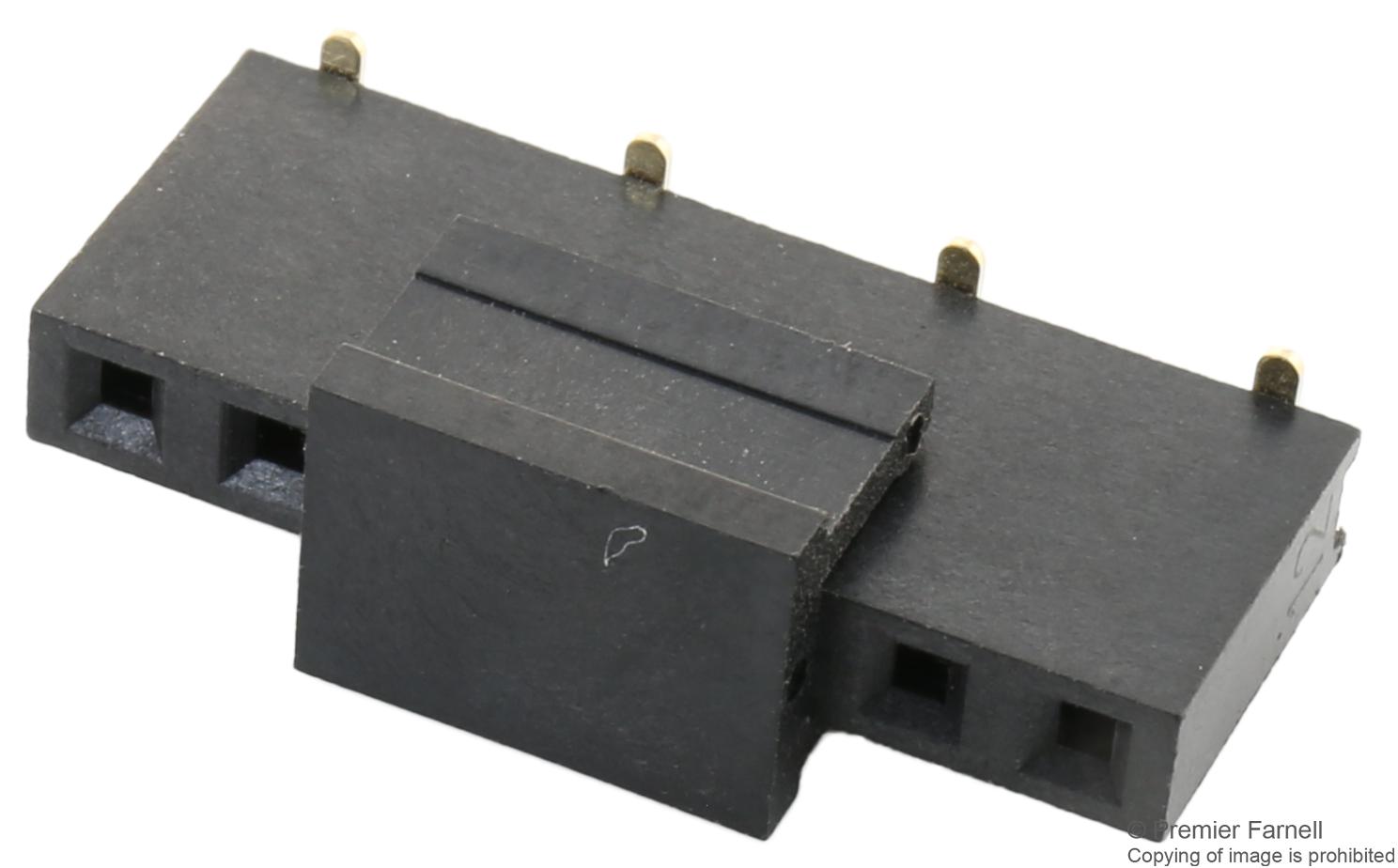

MULTICOMP PRO 2212SM07G75B1PCR PCB Receptacle with Cap
The MULTICOMP PRO 2212SM-07G-75-B1-PCR is a robust and reliable PCB receptacle designed for secure connections in a variety of electronic applications. This 7-position connector features a vertical orientation and a compact 7.5mm height, making it ideal for space-constrained designs. The SMD (Surface Mount Device) capability simplifies assembly processes and enhances overall board density. Constructed with high-temperature Nylon 9T plastic and phosphor bronze contacts with gold plating, this receptacle ensures excellent electrical performance and durability. It is commonly used in industrial control systems, instrumentation, and consumer electronics where reliable signal transmission is critical.
MULTICOMP PRO 2212SM07G75B1PCR PCB Receptacle with Cap Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: High Temp. Plastic (Nylon 9T UL94V-0)
- Insulator Colour: Black
- Contact Material: Phosphor Bronze
- Finish: Gold Plated
- A (mm): 18.28
- B (mm): 15.24
- C (mm): 5.8
- Solder Temp: 260°C±5°C
- Solder Time: 5±0.5 sec
- Solder Wetting Percentage: 95% min
