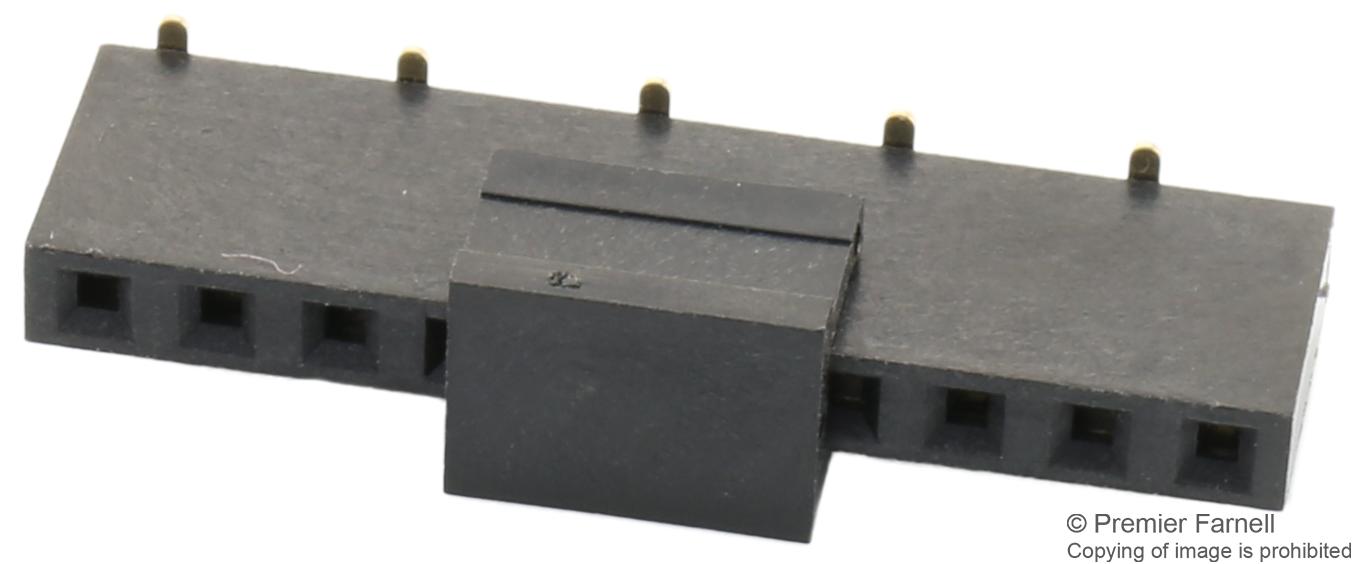

MULTICOMP PRO 2212SM10G75B1PCR PCB Receptacle with Cap
The MULTICOMP PRO 2212SM-10G-75-B1-PCR is a surface-mount device (SMD) PCB receptacle designed for reliable electrical connections in a variety of applications. Its 2.54mm pitch and vertical mounting orientation make it ideal for space-constrained designs. The cap provides protection against dust and moisture, enhancing the connector's durability. Constructed with phosphor bronze contacts and gold plating for excellent conductivity and corrosion resistance, this receptacle is suitable for use in industrial automation, consumer electronics, and telecommunications equipment. The high-temperature nylon insulator ensures reliable performance across a wide operating temperature range.
MULTICOMP PRO 2212SM10G75B1PCR PCB Receptacle with Cap Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator: High Temp. Plastic (Nylon 9T UL94V-0)
- Insulator Colour: Black
- Contact Material: Phosphor Bronze
- Finish: Gold Plated
- A (mm): 5.58
- B (mm): 2.54
- C (mm): 5.8
- Positions: 10
- Rows: 1
- Mounting: Vertical
- Height: 7.5mm
Buy the 2212SM-10G-75-B1-PCR MULTICOMP PRO PCB Receptacle with Cap | myMectronic
Purchase the MULTICOMP PRO 2212SM-10G-75-B1-PCR PCB Receptacle with Cap securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2212SM10G75B1PCR?
You can click on the BUY or RFQ button to purchase 2212SM10G75B1PCR from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2212SM10G75B1PCR?
You can download the 2212SM10G75B1PCR datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2212SM10G75B1PCR?
MULTICOMP PRO
