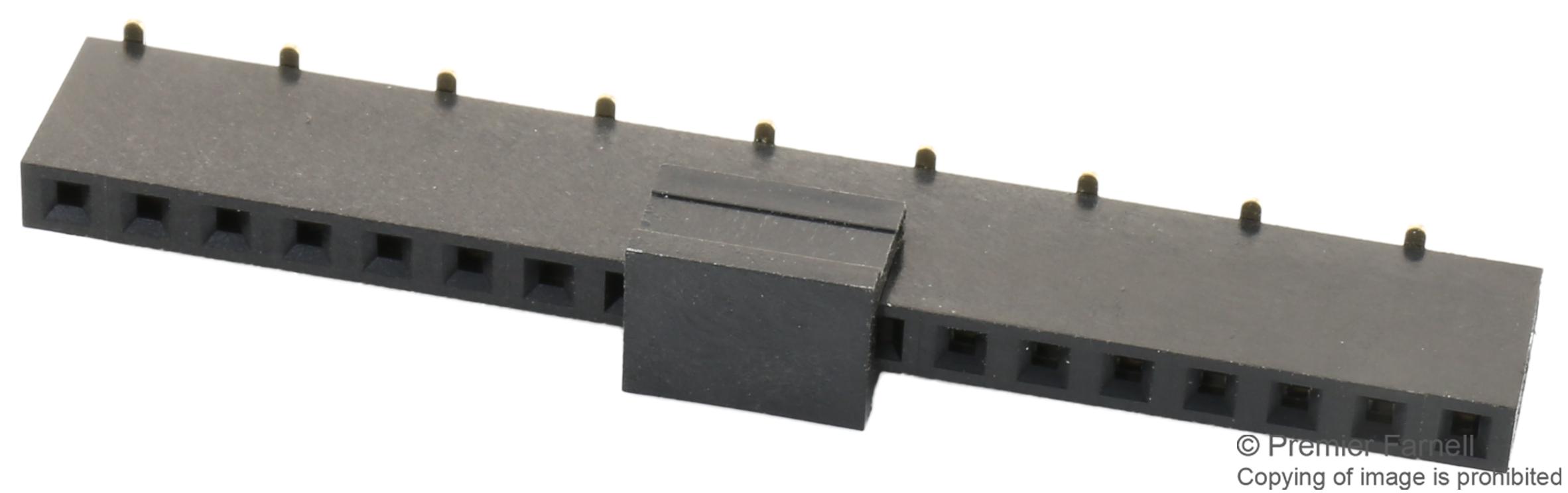

MULTICOMP PRO 2212SM18G75B1PCR PCB Receptacle with Cap
The MULTICOMP PRO 2212SM-18G-75-B1-PCR is a 2.54mm pitch PCB receptacle designed for surface mount technology (SMT). This vertical-mount connector features a cap for added protection and a height of 7.5mm. Constructed with phosphor bronze contacts and gold plating for excellent conductivity and corrosion resistance, it is ideal for applications in industrial automation, consumer electronics, and telecommunications equipment where reliable signal transmission is critical. The Nylon 9T insulator provides robust insulation and heat resistance, ensuring consistent performance across a wide operating temperature range. Its compact design and ease of integration make it a versatile choice for various PCB layouts.
MULTICOMP PRO 2212SM18G75B1PCR PCB Receptacle with Cap Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator Material: High Temp. Plastic (Nylon 9T UL94V-0)
- Insulator Colour: Black
- Contact Material: Phosphor Bronze
- Finish: Gold Plated
- A (mm): 5.58
- B (mm): 2.54
- C (mm): 5.8
- Positions: 18
- Rows: 1
- Mounting Type: SMD
