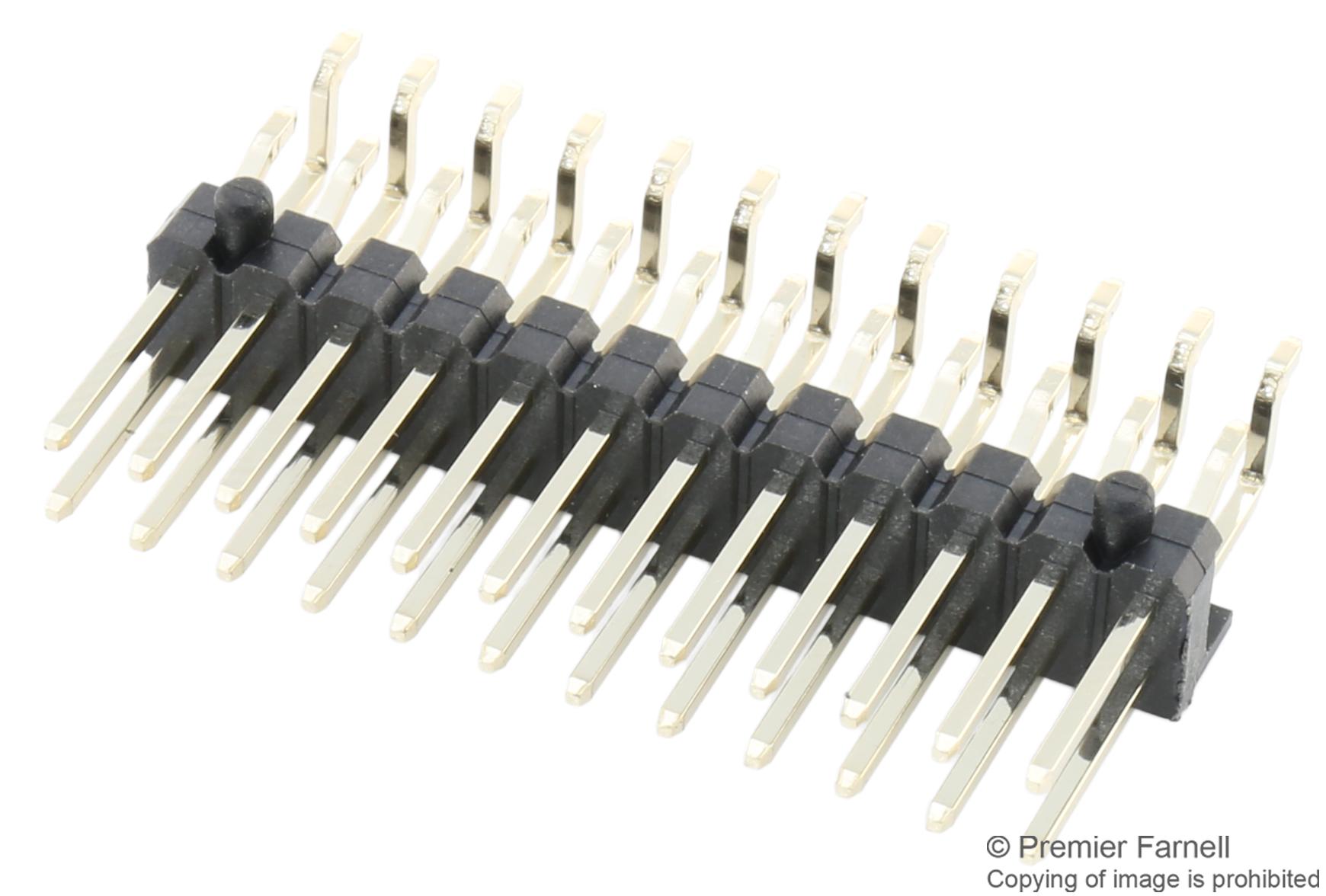

MULTICOMP PRO 2213R24GSM7576APR Right Angle Pin Header
The MULTICOMP PRO 2213R-24G-SM-7576APR is a right-angle pin header designed for surface mount applications. It offers a 2.54mm pitch and a double-row configuration with 24 positions, providing a secure and space-saving connection solution. Constructed with high-temperature Nylon 6T UL94V-0 insulator and gold-plated brass contacts, this header ensures excellent electrical performance and durability in various industrial and consumer electronics applications. Its right-angle design simplifies integration into PCB layouts where vertical component placement is required.
MULTICOMP PRO 2213R24GSM7576APR Right Angle Pin Header Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 500V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Insulator: High Temp. Plastic (Nylon 6T UL94V-0)
- Insulator Colour: Black
- Contact Material: Brass
- Finish: Gold Plated
- A Dimension: 27.94mm
- B Dimension: 30.48mm
Buy the 2213R-24G-SM-7576APR MULTICOMP PRO Right Angle Pin Header | myMectronic
Purchase the MULTICOMP PRO 2213R-24G-SM-7576APR securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2213R24GSM7576APR?
You can click on the BUY or RFQ button to purchase 2213R24GSM7576APR from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2213R24GSM7576APR?
You can download the 2213R24GSM7576APR datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2213R24GSM7576APR?
MULTICOMP PRO
