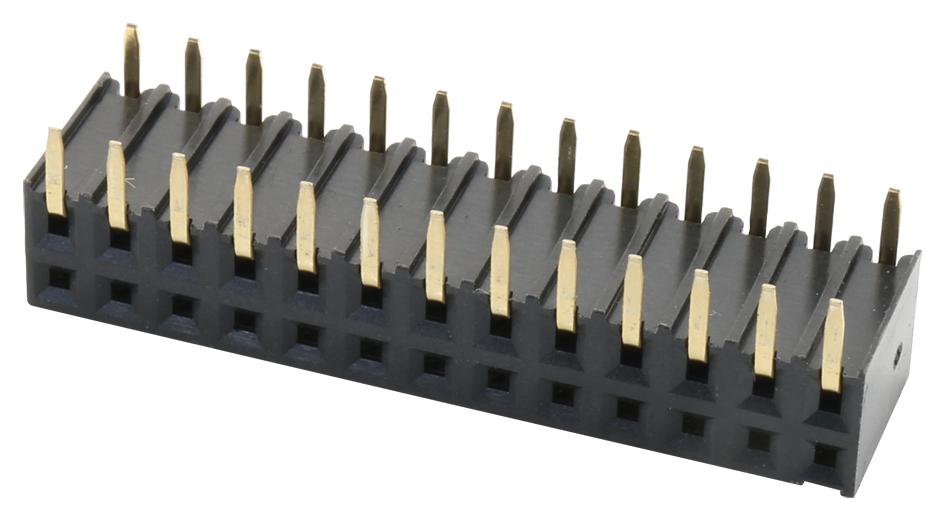

MULTICOMP PRO 2214BR26G PCB Socket
This 2.54mm PCB socket features a double row, horizontal entry, through hole type design suitable for PCB connections in various electronic assemblies. It is RoHS compliant, rated for 3A AC/DC current and 250V AC/DC voltage, with a contact resistance of 20mΩ maximum and an insulation resistance of 1000MΩ minimum. The withstand voltage is 600V AC for one minute, operating within -40°C to +105°C. Constructed from high-temp UL94V-0 plastic and phosphor bronze with a gold-plated finish, it ensures durability and reliable electrical contact for professional applications.
MULTICOMP PRO 2214BR26G PCB Socket Specifications:
- Current Rating: 3A AC/DC
- Voltage Rating: 250V AC/DC
- Contact Resistance: 20mΩ Max.
- Insulation Resistance: 1000MΩ Min.
- Withstanding Voltage: 600V AC for one minute
- Operating Temperature Range: -40°C to +105°C
- Materials: High Temp. Plastic UL94V-0, Phosphor Bronze
- Finish: Gold Plated
- Connector Type: Double Row, Horizontal Entry, Through Hole
- Dimensions vary by model, dimensions include 7.62mm B, 5.08mm A, 2.54mm pitch, multiple pin counts
- RoHS compliant, suitable for professional electronic and PCB applications
Buy the Buy Multicomp Pro PCB Socket Part Number 2214BR26G Online
Purchase the Multicomp Pro PCB Socket 2214BR26G online today and enjoy fast, secure shipping. Designed for high-quality PCB connections, it features a 2.54mm pitch, double row configuration, and a gold-plated finish for excellent conductivity and corrosion resistance. Ideal for electronics prototypes, manufacturing, and repair tasks, this RoHS-compliant connector operates reliably within -40°C to +105°C, supporting up to 3A and 250V. Ensure strong, stable electrical connections with this professional-grade through hole socket for diverse electronic projects.
Buy Multicomp Pro 2214BR26G now and experience unmatched reliability and performance with a durable, gold-plated PCB socket for professional circuit connections.
Frequently Asked Questions
Where can I buy MULTICOMP PRO 2214BR26G?
You can click on the BUY or RFQ button to purchase 2214BR26G from an authorized MULTICOMP PRO distributor.
How do I troubleshoot issues or seek technical support for part 2214BR26G?
You can download the 2214BR26G datasheet or visit the MULTICOMP PRO website for support.
Who is the manufacturer of 2214BR26G?
MULTICOMP PRO
