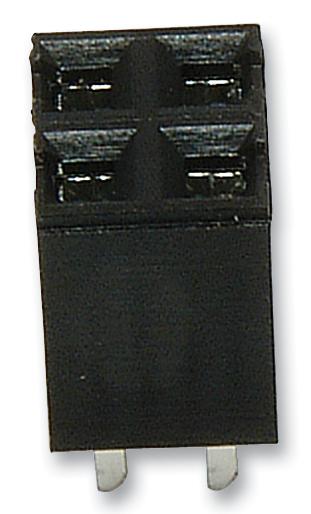

MULTICOMP PRO 2214S08SG85 Double-row PCB Socket
The 2214S series from Multicomp Pro features 2.54mm pitch double-row PCB sockets designed for vertical mounting, rated for 3A and 250VAC/DC. Operating from -40°C to 105°C, these sockets have copper alloy contacts with selective gold plating for durability and conductivity. They support multiple contact configurations from 2 to 24 pins, with a maximum contact resistance of 20 milliohms and insulation resistance of 1000 megaohms. Suitable for industrial projects, they include optional height headers and are valued for reliability and performance in electronic and manufacturing applications.
MULTICOMP PRO 2214S08SG85 Double-row PCB Socket Specifications:
- Series: 2214S
- Connector Type: Board to Board
- Pitch Spacing: 2.54mm
- Number of Rows: 2
- Number of Contacts: 8
- Gender: Receptacle
- Contact Termination: Solder
- Contact Resistance: >20mΩ
- Current Rating: 3A
- Insulation Resistance: 1,000MΩ
- Operating Temperature: -40°C to +105°C
- Voltage Rating: 250V AC/DC
- Withstand Voltage: 600V
- Contact Material: Copper Alloy, Selective Gold Plated
- Material: Insulator Plastic, Black
- Dimensions: Approximately 8.5mm height (optional header), PCB footprint 2.54mm pitch, suitable for vertical mounting
- Rated for industrial applications
- Standard Color: Black
Buy the Multicomp Pro 2214S – Reliable PCB Socket for Industrial Applications
Enhance your electronic assemblies with the reliable double-row PCB socket from Multicomp Pro, featuring a 2.54mm pitch, gold-plated contacts, and a rating of 3A/250VAC. Designed for vertical mounting, it operates within a temperature range of -40°C to 105°C, ensuring high performance in demanding industrial environments. The durable copper alloy contacts provide excellent conductivity and longevity. This versatile connector supports multiple contact configurations, making it ideal for PCB interconnections, industrial automation, and manufacturing equipment. Order online now to ensure a stable, secure connection in your project.
Order your Multicomp Pro Series 2214S PCB Socket today and secure a dependable connection for your industrial projects with outstanding durability and performance.
